Product Description
Barcoded tube racks lose their advantage if they sit loose on a freezer shelf. These Crystal racks hold 96-well microtube boxes and 2D tube racks in a fixed grid, so every rack keeps an addressable position and automated workflows stay matched to freezer inventory.

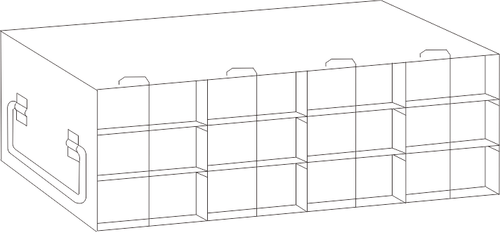

This listing is for Crystal catalog number UFTB-74L, the Freezer Rack for 96-Well Microtube Boxes. Made from pharmaceutical-grade stainless steel with double-welded joints and smoothed edges, each rack takes specialty tube racks 5/8" to 2 1/8" (17.3-53.5 mm) high. Configurations run from 3 to 7 deep and 3 to 6 high to fill the shelves of your freezer, and a security lock device can be added (ordered separately). Add it to your LIGHT LABS order to organize freezer space and speed up sample retrieval.
Key Features
- Sized for 96-Well Formats – compartments fit 96-well microtube boxes and 2D barcoded tube racks from 5/8" to 2 1/8" high
- Wide Choice of Configurations – 3 to 7 deep and 3 to 6 high, holding 9 to 42 boxes
- Lock-Ready – accepts a security lock device, ordered separately, for controlled-access samples
- Pharmaceutical-Grade Stainless Steel – double-welded construction with smoothed edges stands up to years of ultra-low and cryogenic temperature cycling
- Lifetime Warranty – Crystal backs all of its rack products with a lifetime warranty
Specifications
| Catalog Number | UFTB-74L |
| Brand | Crystal Technology & Industries |
| Box Type / Fits | 96-well microtube boxes; Matrix-, FluidX-, Micronic- and Abgene-style 2D tube racks 5/8"-2 1/8" (17.3-53.5 mm) high |
| Configuration | 7 deep x 4 high |
| Box Capacity | 28 boxes |
| Overall Dimensions (H x W x D) | 9 x 5 1/2 x 26 1/8 in (228 x 140 x 664 mm) |
| Compartment Dimensions (H x W x D) | 2 3/16 x 5 3/16 x 3 9/16 in (55 x 130.7 x 91 mm) |
| Lock Device | Lock-ready; security lock device ordered separately |
| Pack Size | 1 rack (each) |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double welded with smoothed edges |
| Warranty | Lifetime warranty on rack products |
| Fits | 96-well microtube boxes and tube racks 5/8"-2 1/8" (17.3-53.5 mm) high |
Other Configurations
- UFTB-33L – 3 Deep x 3 High (9 Boxes)
- UFTB-34L – 3 Deep x 4 High (12 Boxes)
- UFTB-35L – 3 Deep x 5 High (15 Boxes)
- UFTB-36L – 3 Deep x 6 High (18 Boxes)
- UFTB-43L – 4 Deep x 3 High (12 Boxes)
- UFTB-44L – 4 Deep x 4 High (16 Boxes)
- UFTB-45L – 4 Deep x 5 High (20 Boxes)
- UFTB-46L – 4 Deep x 6 High (24 Boxes)
- UFTB-53L – 5 Deep x 3 High (15 Boxes)
- UFTB-54L – 5 Deep x 4 High (20 Boxes)
- UFTB-55L – 5 Deep x 5 High (25 Boxes)
- UFTB-56L – 5 Deep x 6 High (30 Boxes)
- UFTB-63L – 6 Deep x 3 High (18 Boxes)
- UFTB-64L – 6 Deep x 4 High (24 Boxes)
- UFTB-65L – 6 Deep x 5 High (30 Boxes)
- UFTB-66L – 6 Deep x 6 High (36 Boxes)
Applications
- Storage of 2D barcoded tube racks in -80°C freezers
- Compound library and screening collection storage
- Biobank aliquot inventory
- Automated sample handling workflows
- Secure storage of controlled samples
