Product Description
LIGHT LABS is proud to offer the Benchmark Scientific Incu-Shaker™ 20LR Refrigerated Stackable Shaking Incubator (Cat # H3022). It is the heating-and-cooling version of the high-throughput Incu-Shaker™ 20L. A powerful built-in compressor cools the chamber to as much as 20°C below ambient, down to a minimum of 4°C. Heating goes up to 60°C. That full range in one unit makes the H3022 well suited to low-temperature protein expression, cold-sensitive cultures, and workflows that move between growth and induction temperatures. The front-loading, high-grade stainless steel chamber holds up to four 5L Erlenmeyer flasks on a 17.8" x 17.8" platform. Two units can be stacked to double capacity in the same footprint.
The H3022 is driven by a brushless induction motor built for continuous, heavy-load operation. An advanced, computer-designed motor isolation system minimizes noise and vibration, even with two units stacked. Speed runs from 30 to 300 RPM in 1 RPM increments on a 19 mm orbit for efficient aeration. Temperature is set in 0.1°C increments with ±0.1°C accuracy and ±1.25°C uniformity. A color touchscreen controls speed, temperature, and time. The advanced STEP programming mode changes parameters at timed intervals, for example a 37°C growth phase followed by an automatic drop to 18°C for overnight induction. The timer runs from 1 minute to 48 hours or continuously.
The H3022 comes ready to use. It includes an 18" x 18" non-slip rubber mat platform, an adjustable pull-out shelf for static incubation of petri dishes and culture plates, stacking brackets, and a reversible door for left- or right-hand access. For Erlenmeyer flasks and tube racks, the optional H1010-MR MAGic Clamp™ universal platform allows tool-free, magnetic changes of flask clamps and tube racks. The unit is 115V with a 2-year warranty. LIGHT LABS is your trusted source for Benchmark Scientific laboratory equipment.
KEY FEATURES
- Refrigerated heating and cooling — built-in compressor cools to 20°C below ambient (minimum 4°C) and heats up to 60°C
- Temperature range: 4°C to 60°C — set in 0.1°C increments, with ±0.1°C accuracy and ±1.25°C uniformity
- High-capacity 20L stainless steel chamber — holds up to 4 x 5L, 5 x 2L, 9 x 1L, 16 x 500 mL, 25 x 250 mL, or 36 x 125 mL Erlenmeyer flasks (with optional MAGic Clamp™ platform and clamps)
- Stackable design — stack up to 2 units to double throughput without using more floor or bench space
- Front-loading cabinet with reversible door — configurable for left- or right-hand access
- Variable speed: 30–300 RPM — adjustable in 1 RPM increments for gentle cell culture through vigorous microbial aeration
- 19 mm (3/4") orbit — horizontal circular orbit for efficient oxygen transfer and uniform mixing
- Color touchscreen control — intuitive setting and real-time display of speed, temperature, and run time
- STEP programming — advanced mode changes parameters at timed intervals for automated growth-to-induction protocols
- Programmable timer — 1 minute to 48 hours, or continuous operation
- Brushless induction drive — built for continuous heavy-load operation with years of trouble-free service
- Motor isolation system — computer-designed to minimize noise and vibration, even when stacked
- Adjustable pull-out shelf included — for static incubation of petri dishes, culture plates, and other vessels
- Non-slip rubber mat platform included — ready out of the box for culture flasks and trays
- MAGic Clamp™ compatible — the optional H1010-MR magnetic platform allows tool-free changes of flask clamps and tube racks
- Electrical: 115V, 50/60 Hz, 1900W (230V version available as H3022-E)
- 2-year warranty
- Made by Benchmark Scientific
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | H3022 |
| Brand | Benchmark Scientific |
| Product Name | Incu-Shaker™ 20LR Refrigerated Stackable Shaking Incubator |
| Speed Range | 30–300 RPM (variable) |
| Speed Increment | 1 RPM |
| Orbit | 19 mm (3/4"), horizontal circular |
| Drive | Brushless induction drive with motor isolation system |
| Temperature Range | Ambient −20°C (min. 4°C) to 60°C |
| Refrigeration | Built-in compressor |
| Temperature Increment | 0.1°C |
| Temperature Accuracy | ±0.1°C |
| Temperature Uniformity | ±1.25°C |
| Timer | 1 minute to 48 hours, or continuous |
| Programming | STEP programming (timed parameter changes) |
| Controls/Display | Color touchscreen |
| Chamber Material | High-grade 304 stainless steel |
| Door | Front-loading, reversible |
| Stacking | Stackable, up to 2 units |
| Platform Size | 17.8" x 17.8" (45 x 45 cm) |
| Included Platform | 18" x 18" non-slip rubber mat |
| Max Flask Capacity | 4 x 5L Erlenmeyer (with optional MAGic Clamp™ platform and clamps) |
| Chamber Dimensions (W x D x H) | 20" x 19.9" x 22.7" (51 x 50.5 x 57.7 cm) |
| External Dimensions (W x D x H) | 23.6" x 34.25" x 28.7" (60 x 87 x 73 cm) |
| Weight | 307 lbs (139 kg) |
| Electrical | 115V, 50/60 Hz; 1900W |
| Warranty | 2 years |
FLASK CAPACITY (WITH OPTIONAL MAGIC CLAMP™ PLATFORM H1010-MR)
| Flask Size | Max Quantity |
|---|---|
| 5L Erlenmeyer | 4 |
| 2L Erlenmeyer | 5 |
| 1L Erlenmeyer | 9 |
| 500 mL Erlenmeyer | 16 |
| 250 mL Erlenmeyer | 25 |
| 125 mL Erlenmeyer | 36 |
WHAT'S INCLUDED
- Incu-Shaker™ 20LR Refrigerated Shaking Incubator (H3022)
- 18" x 18" non-slip rubber mat platform
- Adjustable pull-out shelf
- Stacking brackets
- Power cord and operator's manual
INCU-SHAKER™ 20LR vs. 20L vs. 10LR — KEY DIFFERENCES
| Feature | Incu-Shaker™ 20LR (H3022) | Incu-Shaker™ 20L (H3020) | Incu-Shaker™ 10LR (H2012) |
|---|---|---|---|
| Refrigeration | Yes — heating and cooling | No — heating only | Yes — heating and cooling |
| Temperature Range | Ambient −20°C (min. 4°C) to 60°C | Ambient +5°C to 60°C | Ambient −12°C to 60°C |
| Max Flask Size | 4 x 5L | 4 x 5L | 5 x 2L |
| Loading | Front-loading, reversible door | Front-loading, reversible door | Top-loading lid |
| Stackable | Yes — up to 2 units | Yes — up to 2 units | No |
| Adjustable Shelf | Included | Included | Optional |
| Weight | 307 lbs | 268 lbs | 170 lbs |
| Power (115V) | 1900W | 540W | 450W |
| Best For | Large-volume, below-ambient and low-temp induction work | High-throughput cultures at or above ambient | Benchtop refrigerated flask cultures up to 2L |
OPTIONAL ACCESSORIES FOR H3022 (SOLD SEPARATELY)
| Cat # | Description |
|---|---|
| H1010-MR | MAGic Clamp™ Universal Platform, 18" x 18" — required for all MAGic Clamp™ flask clamps and tube racks |
| H1000-MR-125 | MAGic Clamp™ Flask Clamp, 125 mL Erlenmeyer |
| H1000-MR-250 | MAGic Clamp™ Flask Clamp, 250 mL Erlenmeyer |
| H1000-MR-500 | MAGic Clamp™ Flask Clamp, 500 mL Erlenmeyer |
| H1000-MR-1000 | MAGic Clamp™ Flask Clamp, 1000 mL Erlenmeyer |
| H1000-MR-2000 | MAGic Clamp™ Flask Clamp, 2000 mL Erlenmeyer |
| H1000-MR-3000 | MAGic Clamp™ Flask Clamp, 3000 mL Erlenmeyer |
| H1000-MR-5000 | MAGic Clamp™ Flask Clamp, 5000 mL Erlenmeyer |
| H1000-MR-T15 | MAGic Clamp™ Tube Rack, 32 x 15 mL tubes |
| H1000-MR-T50 | MAGic Clamp™ Tube Rack, 15 x 50 mL tubes |
| H1000-MR-1550 | MAGic Clamp™ Tube Rack, 30 x 15 mL and 20 x 50 mL tubes |
| H1000-MR-T14 | MAGic Clamp™ Tube Rack, 72 x 14 mm culture tubes |
| H1000-MR-MP | MAGic Clamp™ Microplate Clamp, one microplate |
| H1010-P-MP | Dedicated Platform, holds 6 standard microplates |
| H1010-P-SP | Universal Spring Platform |
Note: The included non-slip rubber mat platform is not compatible with MAGic Clamp™ magnetic clamps or racks. The H1010-MR platform is required.
APPLICATIONS
- Low-temperature recombinant protein expression (e.g., 16–20°C induction) to improve solubility and folding
- Automated growth-to-induction protocols using STEP programming
- Large-volume bacterial and yeast cultures in Erlenmeyer flasks up to 5L
- Cold-sensitive and below-ambient cultures, including 4°C incubations
- High-throughput culture work in core facilities and shared labs (stack 2 units)
- Static incubation of petri dishes and culture plates on the adjustable shelf
- Stable incubation in warm labs where room temperature exceeds the target setpoint
- Any laboratory application requiring a high-capacity refrigerated shaking incubator
ORDERING INFORMATION — BENCHMARK SCIENTIFIC SHAKING INCUBATORS
| Cat # | Product | Temperature Range | Key Feature |
|---|---|---|---|
| H3022 | Incu-Shaker™ 20LR (Refrigerated), 115V | Ambient −20°C (min. 4°C) to 60°C | Refrigerated stackable 20L model |
| H3022-E | Incu-Shaker™ 20LR (Refrigerated), 230V | Ambient −20°C (min. 4°C) to 60°C | 230V version of H3022 |
| H3020 | Incu-Shaker™ 20L, 115V | Ambient +5°C to 60°C | Stackable — up to 4 x 5L flasks |
| H3020-E | Incu-Shaker™ 20L, 230V | Ambient +5°C to 60°C | 230V version of H3020 |
| H2012 | Incu-Shaker™ 10LR (Refrigerated), 115V | Ambient −12°C to 60°C | Refrigerated benchtop model |

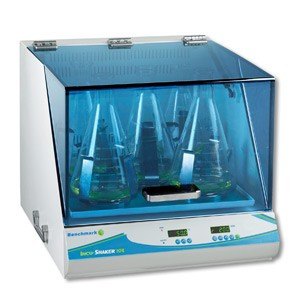

| H2010 | Incu-Shaker™ 10L, 115V | Ambient +5°C to 60°C | Benchtop — up to 5 x 2L flasks |
| H1001-M | Incu-Shaker™ Mini | Ambient +5°C to 60°C | Compact benchtop shaking incubator |
| H3501 | Incu-Shaker™ CO₂ Mini | Ambient +5°C to 60°C | CO₂-compatible compact shaker |
