Product Description

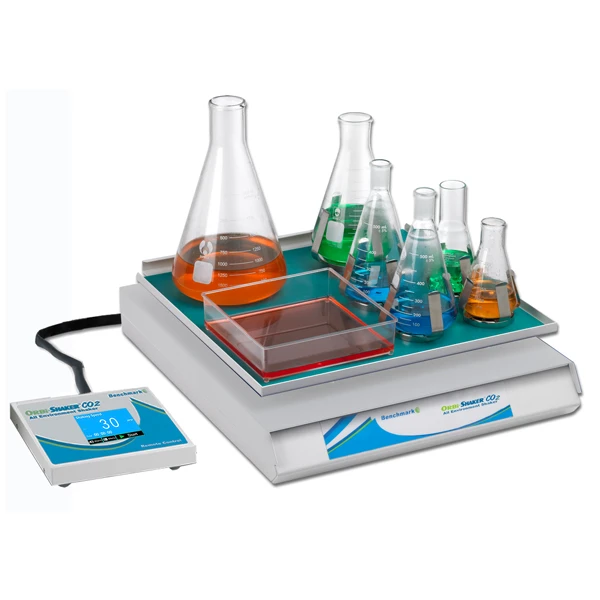

LIGHT LABS is proud to offer the Benchmark Scientific Orbi-Shaker™ CO2 XL (Cat # BT4011) — the high-capacity format of the Orbi-Shaker™ CO2 series, combining all the purpose-built CO2 incubator features of the standard BT4001 with a significantly larger 16" x 16.5" platform that simultaneously accommodates up to 5 x 2L or 9 x 1L Erlenmeyer flasks. The BT4011 is the definitive orbital shaker for high-throughput cell culture and protein expression labs requiring maximum flask capacity inside a CO2 incubator — providing nearly 2.5x more platform work surface than the standard BT4001 (13" x 12") while delivering the same CO2-specific design features that make it safe, reliable, and contamination-free in incubator environments.
Like the BT4001, the Orbi-Shaker™ CO2 XL is purpose-built for CO2 incubator and extreme environment operation — not a standard benchtop orbital shaker placed inside an incubator. The included remote controller allows complete speed and timer adjustment from outside the incubator through a flat cable that passes through the incubator door seal without creating CO2 leakage gaps — maintaining the CO2 atmosphere, temperature equilibrium, and sterile conditions inside the chamber at all times. The instrument withstands temperatures from 0°C to 65°C and humidity levels up to 100%, with corrosion-resistant construction for long-term reliability in saturated humidity CO2 incubator environments.
The 16" x 16.5" aluminum platform is supplied with a non-slip rubber mat suitable for low-speed applications (below 120 RPM). For high-speed mixing, the optional MAGic Clamp™ platform accessories enable tool-free magnetic flask clamp exchange. Note: the supplied aluminum platform is not compatible with magnetic MAGic Clamp™ accessories — an optional steel platform (BT4010-MR) designed to attach on top of the supplied aluminum platform is required for MAGic Clamp™ use. The 60.5 inch (154 cm) cord provides flexible placement inside large incubators with external remote controller routing. 2-year warranty. LIGHT LABS is your trusted source for Benchmark Scientific laboratory equipment.
KEY FEATURES
- Highest flask capacity of any Benchmark Scientific CO2 incubator orbital shaker — 5 x 2L or 9 x 1L Erlenmeyer flasks simultaneously; nearly 2.5x more platform area than the standard BT4001
- Large 16" x 16.5" (40 x 42.5 cm) platform — maximizes capacity inside CO2 incubators; fits most standard large-format CO2 incubators
- Remote controller included — adjust speed and timer from outside the incubator without opening the door; maintains CO2 atmosphere, temperature, and sterile conditions
- Flat cable design — prevents CO2 gas leakage at door seal; maintains airtight incubator conditions
- 0°C to 65°C operating range — full CO2 incubator temperature range including standard 37°C cell culture conditions
- 100% humidity tolerance — corrosion-resistant construction for long-term reliability in saturated CO2 incubator environments
- Variable speed: 30–300 RPM in 1 RPM increments
- 19mm horizontal circular orbit — thorough mixing and aeration for cell culture and bacterial applications
- Programmable timer: 1 min to 99 hr / continuous
- Non-slip rubber mat platform included — suitable for low-speed applications (below 120 RPM)
- MAGic Clamp™ compatible — requires optional steel platform BT4010-MR (sold separately) for magnetic clamp use at high speeds
- 60.5 inch (154 cm) cord — long cord for flexible CO2 incubator placement
- 115V or 230V, 50–60 Hz; 50W
- Dimensions: 17" x 18" x 5" (43 x 45.75 x 12.7 cm)
- Weight: 50 lbs (23 kg)
- 2-year warranty
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | BT4011 |
| Brand | Benchmark Scientific |
| Product Name | Orbi-Shaker™ CO2 XL |
| Motion Type | Horizontal circular orbital |
| Speed Range | 30–300 RPM |
| Speed Increment | 1 RPM |
| Orbit | 19 mm |
| Timer | 1 min to 99 hr / Continuous |
| Control | Remote controller (included) — outside incubator |
| Cable Type | Flat cable — prevents CO2 gas leakage |
| Platform Size | 16" x 16.5" (40 x 42.5 cm) |
| Platform Material | Aluminum with non-slip rubber mat |
| Max Flask Capacity | 5 x 2L or 9 x 1L Erlenmeyer flasks |
| Load Capacity | 50 lbs (23 kg) platform rated |
| Temperature Range | 0°C to +65°C |
| Max Humidity | 100% |
| Construction | Corrosion-resistant |
| Cord Length | 60.5 in (154 cm) |
| MAGic Clamp™ Compatible | Yes — requires optional BT4010-MR steel platform |
| Dimensions (W x D x H) | 17" x 18" x 5" (43 x 45.75 x 12.7 cm) |
| Weight | 50 lbs (23 kg) |
| Electrical | 115V or 230V, 50–60 Hz; 50W |
| Warranty | 2 years |
IMPORTANT NOTE — MAGIC CLAMP™ COMPATIBILITY
The included 16" x 16.5" aluminum platform is NOT compatible with magnetic MAGic Clamp™ accessories. For high-speed flask mixing with MAGic Clamp™ clamps, the optional steel platform (BT4010-MR) must be purchased separately and attached to the top of the supplied aluminum platform with screws.
ORBI-SHAKER™ CO2 XL BT4011 vs. CO2 BT4001 — KEY DIFFERENCES
| Feature | CO2 XL BT4011 | CO2 BT4001 |
|---|---|---|
| Platform Size | 16" x 16.5" | 13" x 12" |
| Max Flask Capacity | 5 x 2L / 9 x 1L | 2 x 2L / 5 x 1L |
| Weight | 50 lbs (23 kg) | 25 lbs (11.5 kg) |
| Dimensions | 17" x 18" x 5" | 11.9" x 13.4" x 3.5" |
| Remote Controller | Yes | Yes |
| Temp/Humidity | Identical | Identical |
| MAGic Clamp | Requires BT4010-MR steel platform | Standard BT3000-MR |
| Best For | High-capacity CO2 incubator shaking | Standard CO2 incubator shaking |
APPLICATIONS
- High-throughput mammalian cell culture in 1L and 2L Erlenmeyer flasks inside CO2 incubators
- Large-scale protein expression in mammalian cell systems inside CO2 incubators
- Suspension cell culture at maximum capacity requiring continuous CO2-controlled orbital agitation
- High-throughput bacterial and yeast cultures in CO2-controlled environments
- Scale-up cell culture workflows requiring maximum simultaneous flask capacity in a CO2 incubator
- Any high-capacity orbital shaking application inside a CO2 incubator requiring remote speed and timer control
ORDERING INFORMATION — BENCHMARK SCIENTIFIC ORBI-SHAKER™ CO2 SERIES
| Cat # | Product | Platform | Max Flask Capacity | Key Feature |
|---|---|---|---|---|
| BT4011 | Orbi-Shaker™ CO2 XL | 16" x 16.5" | 5 x 2L / 9 x 1L | High-capacity CO2 incubator; remote controller |
| BT4001 | Orbi-Shaker™ CO2 | 13" x 12" | 2 x 2L / 5 x 1L | Standard CO2 incubator; remote controller |
| BT1011 | Orbi-Shaker™ XL (benchtop) | 18" x 18" | 5 x 2L / 9 x 1L | Benchtop only; beltless motor; touch screen |
| BT3001 | Orbi-Shaker™ (benchtop) | 13" x 12" | 2 x 2L / 5 x 1L | Benchtop; touch screen; brushless motor |
