Product Description

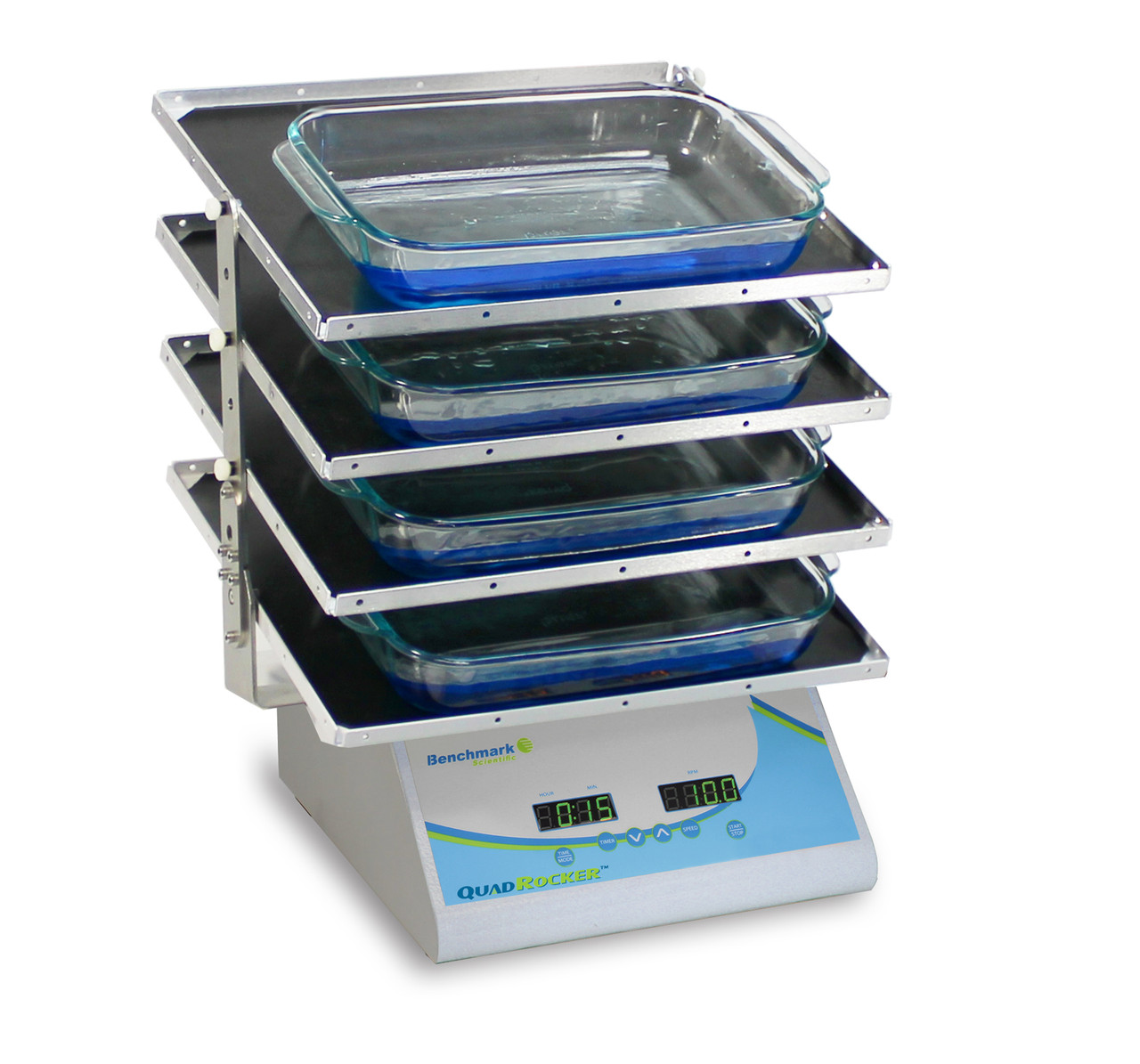

LIGHT LABS is proud to offer the Benchmark Scientific QuadRocker™ (Cat # BR5404) — a completely unique and transformative concept in laboratory platform rocking, featuring a patented tiered attachment system that simultaneously rocks up to four 16" x 12" non-slip rubber mat platforms — providing a total combined work surface of over 750 square inches in a single instrument footprint. The QuadRocker™ is the definitive solution for high-throughput molecular biology laboratories, core facilities, and research groups that regularly run large numbers of simultaneous gel blotting, washing, staining, or incubation steps — where conventional single-platform rockers create a critical bottleneck requiring multiple instruments, staggered processing, or extended protocol times.
The four-platform tiered design of the BR5404 is the breakthrough that makes the QuadRocker™ unique in the laboratory equipment market. While all other platform rockers — including the BR5000 with its optional stacking platform — provide at most two rocking levels, the QuadRocker™ provides four rocking levels simultaneously on a single motor and drive system, multiplying productive rocking capacity by 4x without any additional bench space beyond the single instrument footprint. The base level plus three additional stacking platforms together provide over 750 square inches of rocking work surface — enough to run four full-size gel blotting or staining experiments simultaneously.
The QuadRocker™'s platform configuration is fully user-adjustable — for standard gel blotting, washing, and staining applications, all four platforms are installed at standard spacing. For applications requiring taller vessels (deep blotting boxes, large containers, roller bottles), the platforms can be repositioned to provide up to 8¼ inches (21 cm) of clearance between levels — accommodating virtually any vessel format. Digital speed and timer controls — a step up from the analog controls of the BR5000 — provide precise, reproducible rocking conditions with a programmable timer for walk-away automated rocking protocols. 2-year warranty. LIGHT LABS is your trusted source for Benchmark Scientific laboratory equipment.
KEY FEATURES
- Unique 4-platform tiered rocking system — the only platform rocker providing four simultaneous rocking levels; base + 3 stacking platforms included
- 750+ square inches total work surface — 4 x 16" x 12" platforms simultaneously; 4x the rocking capacity of a single-platform rocker in the same footprint
- User-configurable platform height — easily adjust platform quantity and spacing; up to 8¼ in (21 cm) clearance between levels for tall vessels
- Digital speed and timer control — precise reproducible settings; programmable timer for walk-away automated rocking; step up from analog controls
- Variable speed: 5–80 RPM — from gentle wave-effect rocking through vigorous agitation
- Variable tilt angle: 6°–22° — user-adjustable tilt for optimizing rocking conditions across all four platforms simultaneously
- Four 16" x 12" non-slip rubber mat platforms included — all four platforms in the box; complete four-tier work surface ready out of the box
- 12 lb (5.45 kg) load capacity per platform level
- Cold room and incubator compatible — 0°C to +50°C operating temperature range
- 115V or 230V, 50–60 Hz
- Dimensions: 16" x 13.5" x 8" (40.6 x 34.2 x 20.3 cm) — compact footprint for 4-platform capacity
- Weight: 27 lbs (12 kg)
- 2-year warranty
- Made by Benchmark Scientific
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | BR5404 |
| Brand | Benchmark Scientific |
| Product Name | QuadRocker™ — 4-Platform Tiered Rocker |
| Number of Platforms | 4 (base + 3 stacking) — all included |
| Total Work Surface | 750+ sq in (4 x 16" x 12") |
| Speed Range | Variable 5–80 RPM |
| Tilt Angle | Variable 6°–22° |
| Speed/Timer Control | Digital |
| Platform Size | 16" x 12" (40.5 x 30 cm) per level |
| Platform Mat | Non-slip rubber mat (included on all 4 platforms) |
| Max Platform Clearance | Up to 8¼ in (21 cm) — user configurable |
| Load Capacity | 12 lbs (5.45 kg) per level |
| Operating Temperature | 0°C to +50°C |
| Dimensions (W x D x H) | 16" x 13.5" x 8" (40.6 x 34.2 x 20.3 cm) |
| Weight | 27 lbs (12 kg) |
| Electrical | 115V or 230V, 50–60 Hz |
| Warranty | 2 years |
QUADROCKER™ PLATFORM CONFIGURATION OPTIONS
| Configuration | Platforms | Platform Clearance | Best For |
|---|---|---|---|
| All 4 platforms — standard spacing | 4 | Standard | Gel blotting, washing, staining; standard vessels |

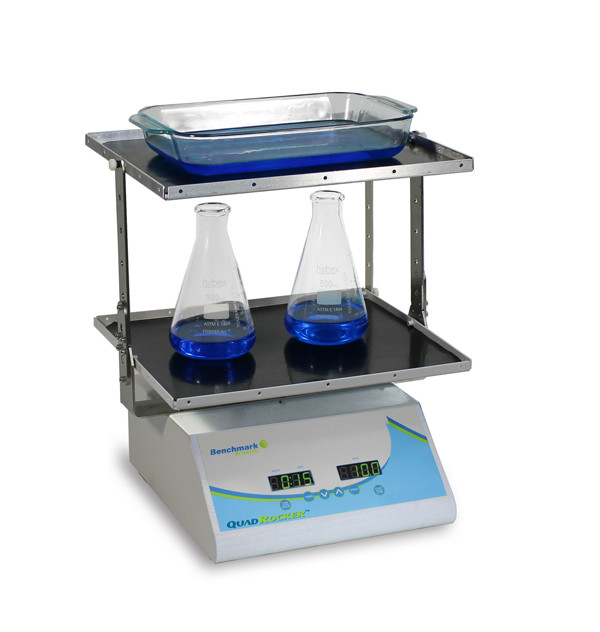

| 3 platforms — increased spacing | 3 | More | Medium-height vessels and containers |
| 2 platforms — maximum spacing | 2 | Up to 8¼ in (21 cm) | Tall vessels; deep blotting boxes |
| 1 platform — single level | 1 | Maximum | Extra-tall vessels |
QUADROCKER™ BR5404 vs. SINGLE-PLATFORM ROCKERS — CAPACITY COMPARISON
| Feature | QuadRocker™ BR5404 | Everlast™ BR5000 | BenchRocker™ BR2000 |
|---|---|---|---|
| Platforms | 4 simultaneous | 1 (+ 1 optional stack) | 1 (+ 1 optional stack) |
| Total Work Surface | 750+ sq in | 192–384 sq in | 168–336 sq in |
| Control | Digital speed + timer | Analog | Analog |
| Speed Range | 5–80 RPM | 3–80 RPM | 2–30 RPM |
| Configurable Height | Yes — up to 8¼" | No | No |
| Best For | 4x throughput; core facility | 24/7 heavy-duty single platform | Variable-speed general use |
APPLICATIONS
- High-throughput simultaneous Western blot washing across 4 gel blotting boxes at once
- Running 4 simultaneous gel staining/destaining experiments on a single instrument
- Core facility high-throughput membrane incubations and antibody staining
- Multiple simultaneous hybridization incubations across 4 platform levels
- Large-format simultaneous ELISA plate washing steps
- Any application requiring 4x platform rocking capacity in a single instrument footprint
- Facilities requiring maximum rocking throughput while minimizing bench space and instrument count
ORDERING INFORMATION — BENCHMARK SCIENTIFIC PLATFORM ROCKERS
| Cat # | Product | Platforms | Speed | Key Feature |
|---|---|---|---|---|
| BR5404 | QuadRocker™ | 4 simultaneous | Variable 5–80 RPM | 750+ sq in; digital control; configurable height |
| BR5000 | Everlast™ 24/7 | 1 (+1 optional) | Variable 3–80 RPM | 5-year warranty; stainless steel; 24/7 duty |
| BR2000 | BenchRocker™ 2D | 1 (+1 optional) | Variable 2–30 RPM | Variable speed + tilt; brushless motor |
| BR1000 | BenchBlotter™ | 1 (+1 optional) | Fixed 12 RPM | One-touch; blot/gel optimized |
