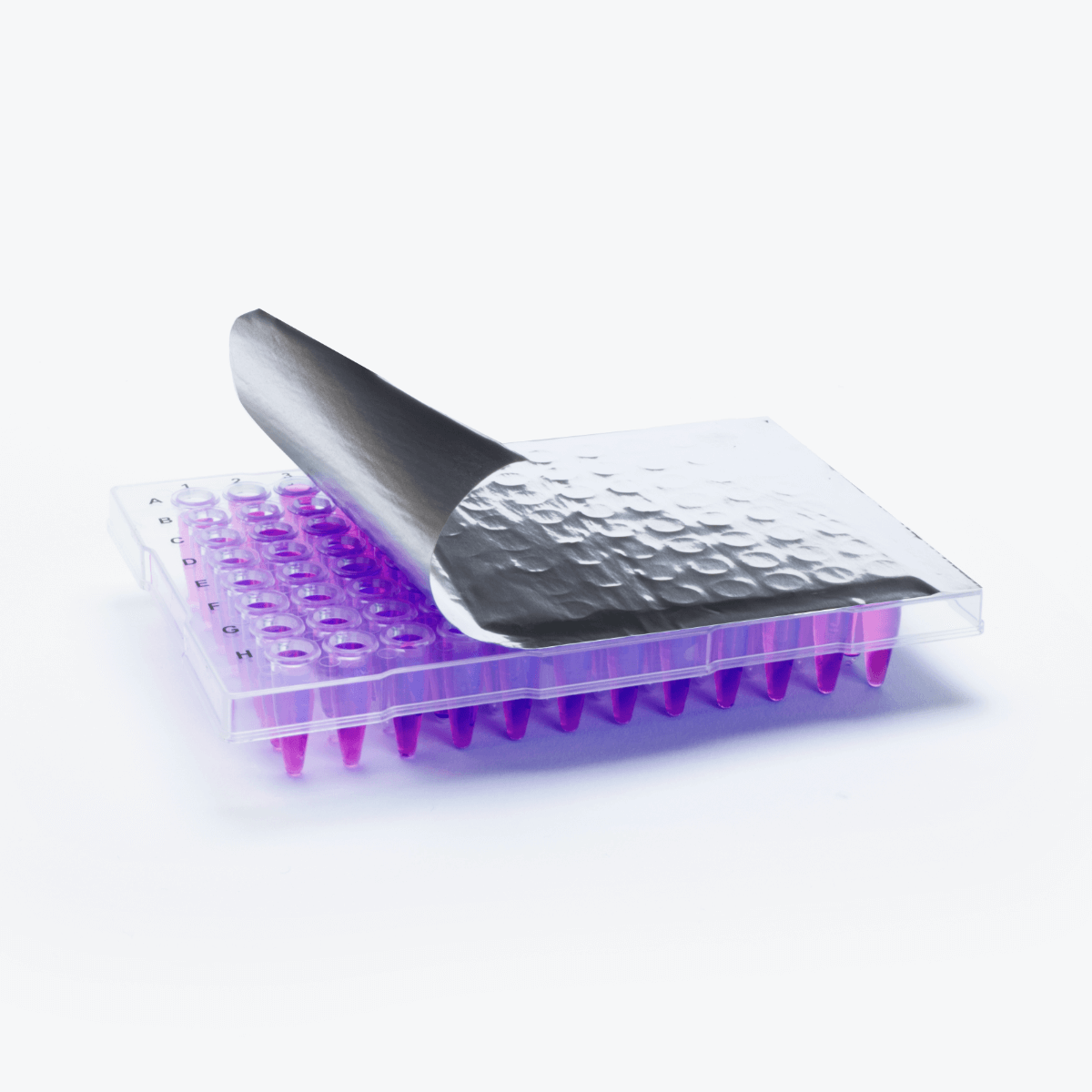

Excel Scientific AlumaSeal® 96™ F-96-100 Aluminum Foil Seal for PCR & Cold Storage, Raised-Rim 96-Well Plates, Non-Sterile — 100/Pack

Product Description

The Excel Scientific AlumaSeal® 96™ F-96-100 is a 38µm soft non-permeable aluminum foil sealing film with a 38µm medical-grade acrylic adhesive — specifically dimensioned to fit inside the rim of raised-rim and non-skirted 96-well PCR plates. AlumaSeal® 96 films are heat and cold resistant, recommended for temperatures from -80°C to +120°C, and are certified DNase, RNase, and nucleic-acid-free. Compared to other aluminum foils, AlumaSeal® 96 has less tendency to roll back or itself when removing the backing paper and conforms well to the plate during application. AlumaSeal 96™ films have one partial-width end tab with no perforations and fit inside the rim of raised-rim plates. Suitable for both PCR thermal cycling and cold storage at -80°C. Pierceable with pipette tips and robotic probes. Non-sterile only. Dimensions: 127.0 × 77.8 mm including single 9.5mm partial-width end tab. 100 foil seals per pack.

Fits Inside the Rim of Raised-Rim Plates — The Critical Differentiator The F-96-100 is the raised-rim format of the AlumaSeal® line — dimensioned at 77.8 × 127.0 mm to fit precisely within the raised rim of 96-well PCR plates rather than overlapping it. This fit-inside-rim design is essential for raised-rim and non-skirted PCR plates where a full-size aluminum foil seal (such as the AlumaSeal® II AF-100 at 82.6 × 146.1 mm) would overlap the rim — causing the foil to lift at the edges during thermal cycling, compromising the seal and increasing evaporation. The F-96-100 eliminates this problem entirely by staying within the plate rim.

PCR and Cold Storage — Both Supported Unlike the AlumaSeal® CS™ (FC-100), which is formulated for cold storage only, the F-96-100 supports both PCR thermal cycling (-80°C to +120°C) and cold storage. This dual-use capability makes the AlumaSeal® 96™ the ideal single foil seal for labs that seal plates for PCR runs and also need to store sealed plates at -80°C — without maintaining separate seal inventories for each application.

38µm Soft Non-Permeable Aluminum Foil — Conforms Well, Less Roll-Back The 38µm aluminum foil of the F-96-100 is thinner and softer than the 50µm foil used in the AlumaSeal® II and AlumaSeal® CS™ lines — making it more conformable to the well geometry of raised-rim plates and significantly less prone to rolling back during application. The soft foil conforms readily to the plate surface with hand pressure or a sealing paddle, producing a consistent, uniform seal across all 96 wells without requiring a heat sealing instrument.

No Heat Sealer Required — Hand Pressure or Sealing Paddle Application Completing application of AlumaSeal 96 sealing films by pressing with an accessory film-sealing paddle assures a secure uniform seal around all wells. The paddle fits within the rim of a raised-well plate. The sealing paddle is specifically recommended over a standard plate sealing roller for raised-rim plates — the paddle dimensions are designed to fit within the rim and apply even pressure across all wells without contacting the rim itself. Hand pressure is sufficient for application, but the paddle ensures the most uniform seal across every well.

Pierceable — Robotic Probe and Pipette Tip Compatible The F-96-100 is pierceable with standard pipette tips and robotic liquid handling probes — allowing direct well access for sample retrieval without removing the seal. This is critical for automated compound management, HTS workflows, and any application where robotic probes must access individual wells while the plate remains sealed.

One Partial-Width End Tab — Simplified Application The single partial-width end tab with no perforations simplifies film handling and positioning over the plate — providing grip during application without a full-width tab that would need to be removed separately. The partial-width design keeps application fast and straightforward in high-throughput environments.

AlumaSeal® 96™ vs. AlumaSeal® II vs. AlumaSeal® CS™ — Choosing the Right Foil:

Compatible Replacement — Cross-Reference Guide

The AlumaSeal® 96™ F-96-100 is a direct compatible replacement for raised-rim aluminum foil plate seals from several major manufacturers. Labs currently using any of the following products can switch directly to the F-96-100 without protocol changes:

• Thermo Fisher Scientific AB-0558 — ABgene® Thermo-Seal Aluminum Sealing Foil for raised-rim plates
• 4titude® 4ti-0536/96 — Heat Sealing Foil for raised-rim 96-well plates
• Bio-Rad MSF1001 — Microseal® 'F' Foil for 96-well plates (raised-rim format)
• Axygen® PCR-AS-200 — Aluminum foil seal for 96-well raised-rim plates
• Thermo Fisher Scientific AB-0626 — Aluminum sealing foil, raised-rim compatible format

Competitor brand names and catalog numbers are referenced for cross-referencing purposes only. Compatibility should be verified for your specific plates and protocols.

Key Features

• 38µm soft non-permeable aluminum foil — more conformable than thicker foils
• 38µm medical-grade acrylic adhesive
• Specifically dimensioned to fit inside the rim of raised-rim and non-skirted 96-well plates
• Suitable for both PCR thermal cycling AND cold storage at -80°C
• No heat sealer required — hand pressure or sealing paddle application
• Less tendency to roll back vs. other aluminum foils
• Pierceable — pipette tips and robotic probes
• One partial-width end tab — no perforations
• Sealing paddle recommended for uniform well coverage (sold separately)
• Certified DNase-free, RNase-free, and nucleic acid-free
• Non-sterile only
• Dimensions: 127.0 × 77.8 mm (including 9.5mm partial-width end tab)
• Film thickness: 38µm / Adhesive thickness: 38µm
• Temperature range: -80°C to +120°C
• Shelf life: 36 months
• 100 foil seals per pack
• Made in the USA

Supported Applications PCR and qPCR plate sealing with raised-rim 96-well plates, cold storage at -80°C of raised-rim plates, HTS compound library plates in raised-rim format, automated compound management with robotic probe access, sample storage and retrieval, and any 96-well raised-rim or non-skirted plate workflow requiring aluminum foil sealing for both thermal cycling and ultra-low temperature storage.
