Product Description
LIGHT LABS is proud to offer the MTC Bio ILP Glass Coated Multiwell Plate (Cat # DP2M-RD-96-GC10) — the deepest and highest-volume format in the ILP Glass Coated 96-well round well lineup, featuring the proprietary SiO₂ (silicon dioxide) quartz glass-coated wells at a maximum depth of 45.30mm and maximum round well volume of 2.0 mL per well. The DP2M-RD-96-GC10 is the definitive choice when maximum well volume is the priority — providing nearly twice the working volume of the standard 33mm deep well formats (1.1 mL) and 67% more volume than the extra-deep DP1M-RD-96-GC10 (1.2 mL) — for workflows that require the largest possible sample volume in a glass-coated 96-well round well format.
The 2.0 mL well volume of the DP2M-RD-96-GC10 makes it ideal for large-scale compound dissolution and serial dilution workflows in DMSO, high-volume protein precipitation from 2 mL plasma or serum inputs, large-scale sample preparation for metabolomics and proteomics requiring maximum input volumes, and high-density biobanking of precious samples where maximum volume per well is required. The 45.30mm depth provides the greatest needle and probe access depth in the ILP Glass Coated round well lineup — enabling autosamplers, robotic probes, and liquid handlers to aspirate from the very bottom of each well with the absolute minimum dead volume, maximizing recovery of every microliter from irreplaceable samples.
The SiO₂ glass coating is especially impactful at the 2.0 mL scale — where the greater total surface area of a deeper well creates more opportunity for lipophilic compound adsorption, polymer leaching, and oxygen ingress vs. shallower formats. By coating the entire inner well surface with quartz glass, the DP2M-RD-96-GC10 maintains glass-like chemical inertness across the full 2.0 mL well depth. LIGHT LABS is your trusted source for MTC Bio ILP Glass Coated Plates.
KEY FEATURES
- Maximum volume and depth in the ILP Glass Coated 96-well round well lineup — 45.30mm well height, 2.0 mL well volume; the deepest, highest-volume glass-coated round well format available
- 2.0 mL well volume — nearly 2x the volume of standard 33mm deep well formats (1.1 mL); ideal for large-scale sample preparation, high-volume precipitation, and maximum-density biobanking
- Maximum probe and needle access depth — 45.30mm depth enables autosampler needles and robotic probes to reach the absolute bottom of each well for minimum dead volume aspiration
- SiO₂ glass coating across full 2.0 mL well depth — glass-like inertness across the greatest total inner surface area in the round well ILP Glass Coated lineup

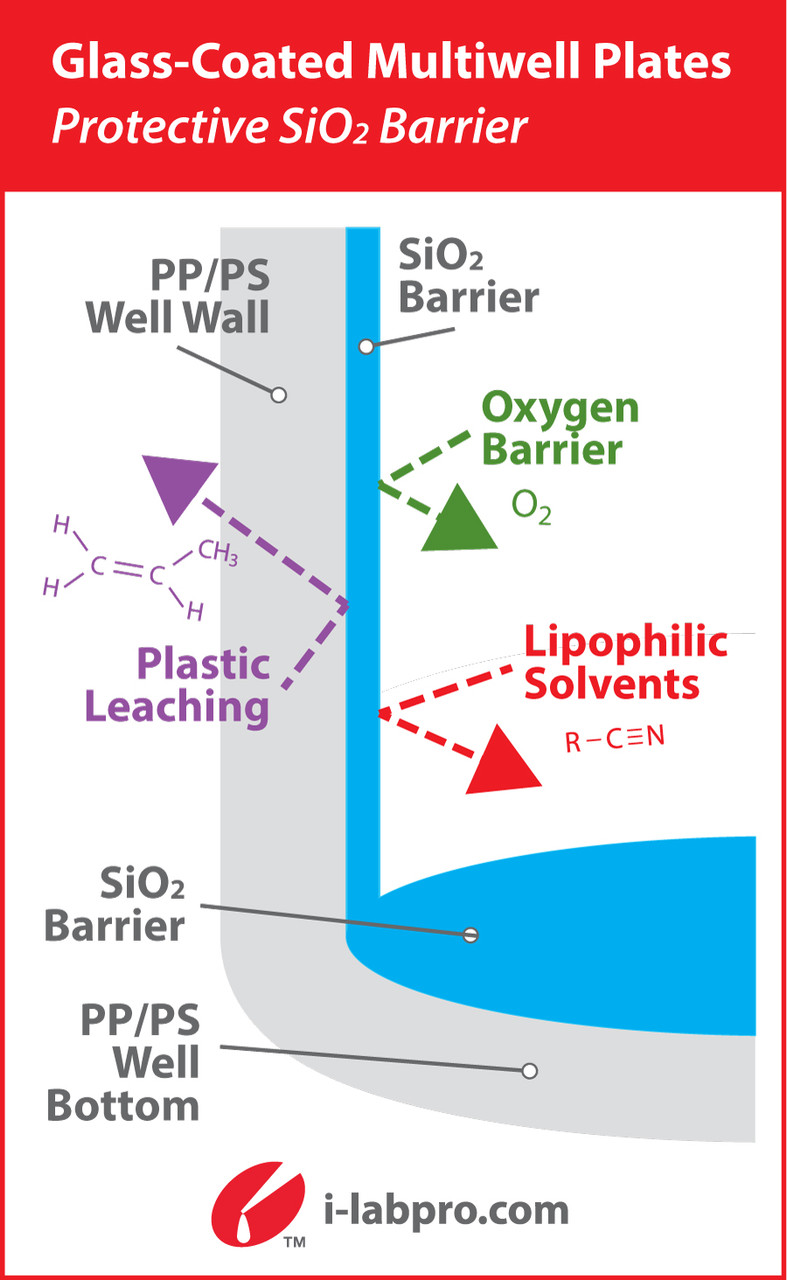

- Proprietary SiO₂ quartz glass inner well coating — molecularly thin glass barrier between sample and PP well wall; glass-like surface properties with plastic plate durability
- Eliminates plastic leaching — SiO₂ barrier dramatically reduces extractables and leachables from PP into sensitive samples across the full 2.0 mL depth
- Reduced oxygen transmission rate — glass coating reduces O₂ permeation through well walls; critical at 2.0 mL storage volumes for oxygen-sensitive compounds
- Superior chemical resistance — glass-like resistance to DMSO, ACN, MeOH, and other organic solvents at maximum well depth
- Minimizes analyte adsorption — glass surface reduces lipophilic compound, drug, and protein adsorption; maximizes quantitative recovery from full 2.0 mL well depth
- Eliminates need for glass vials or glass-lined tubes for 2.0 mL scale glass-like storage
- Automation compatible — fits autosamplers and liquid handlers accommodating 45.30mm deep well plates
- Thermally and chemically stable: -80°C to +80°C
- Packaged 10 plates per pack
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | DP2M-RD-96-GC10 |
| Brand | MTC Bio / ILP (Innovative Laboratory Products) |
| Product Name | ILP Glass Coated Multiwell Plate |
| Well Format | 96 Well, Round |
| Well Bottom | U-Bottom |
| Well Volume | 2.0 mL |
| Well Height | 45.30 mm |
| Well Coating | SiO₂ (silicon dioxide) quartz glass — inner well surface |
| Well Material | Polypropylene (outer) + SiO₂ glass coating (inner) |
| Temperature Range | -80°C to +80°C |
| Automation Compatible | Yes — autosamplers and liquid handlers for 45.30mm deep well plates |
| Plate Format | SBS standard footprint |
| Packaging | 10 plates/pack |
KEY ADVANTAGES OF SiO₂ GLASS COATING vs. STANDARD PP PLATES
| Challenge | Standard PP Plate | ILP Glass Coated Plate |
|---|---|---|
| Plastic Leaching | PP can release trace additives into samples | SiO₂ barrier eliminates contact between sample and polymer |
| Oxygen Transmission | O₂ permeates through PP walls | Glass coating reduces O₂ transmission rate |
| Lipophilic Adsorption | Compounds stick to PP surface, reducing recovery | Glass surface reduces non-specific adsorption |
| Chemical Resistance | Limited vs. organic solvents | Glass-like resistance to solvents and aggressive chemicals |
| Glass Inserts | Required for glass-like performance | Eliminated — glass coating achieves same result |
FULL LINEUP — ILP GLASS COATED 96-WELL ROUND WELL PLATES (SHALLOWEST TO DEEPEST)
| Cat # | Bottom | Well Height | Well Volume | Best For |
|---|---|---|---|---|
| DP36VR-9-GC10 | V-Bottom | 14.60 mm | 300 µL | Shallow V-bottom concentration |
| DP35UR-9-GC10 | U-Bottom | 14.40 mm | 500 µL | Shallow general storage |
| DP04UR-9-GC10 | U-Bottom | 14.75 mm | 335 µL | Shallow intermediate volume |
| DP12UR-9-GC10 | U-Bottom | 31.50 mm | 1.1 mL | Standard deep well, lower clearance |
| DP10UR-9-GC10 | U-Bottom | 33.00 mm | 1.1 mL | Standard deep well height |
| DP11VR-9-GC10 | V-Bottom | 33.00 mm | 1.1 mL | Standard deep well V-bottom |
| DP1M-RD-96-GC10 | U-Bottom | 42.50 mm | 1.2 mL | Extra-deep; autosampler needle access |
| DP2M-RD-96-GC10 | U-Bottom | 45.30 mm | 2.0 mL | Maximum volume and depth |
APPLICATIONS
- Maximum-volume compound dissolution and serial dilution in DMSO at 96-well scale
- High-volume protein precipitation from 2.0 mL plasma, serum, or other biological fluid inputs
- Large-scale sample preparation for metabolomics and proteomics requiring 2.0 mL input volumes
- High-density biobanking of precious samples requiring maximum volume per well in glass-coated format
- LC-MS/MS bioanalytical sample management requiring maximum depth needle access and minimum dead volume
- Drug metabolism and pharmacokinetics (DMPK) large-scale sample management in glass-coated format
- Large-scale compound library storage at 2.0 mL per well requiring glass-like chemical resistance
- Any 96-well round well U-bottom application requiring the maximum available glass-coated well volume
ORDERING INFORMATION — MTC BIO ILP GLASS COATED MULTIWELL PLATES
96 Round Well Plates — SiO₂ Glass Coated
| Cat # | Description | Bottom | Well Height | Well Volume | Qty/Pack |
|---|---|---|---|---|---|
| DP2M-RD-96-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 45.30 mm | 2.0 mL | 10 |
| DP1M-RD-96-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 42.50 mm | 1.2 mL | 10 |
| DP11VR-9-GC10 | Glass Coated Plate, 96 Round Well | V-Bottom | 33.00 mm | 1.1 mL | 10 |
| DP10UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 33.00 mm | 1.1 mL | 10 |
| DP12UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 31.50 mm | 1.1 mL | 10 |
| DP35UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 14.40 mm | 500 µL | 10 |
| DP36VR-9-GC10 | Glass Coated Plate, 96 Round Well | V-Bottom | 14.60 mm | 300 µL | 10 |
| DP04UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 14.75 mm | 335 µL | 10 |
96 Square Well Plates — SiO₂ Glass Coated
| Cat # | Description | Bottom | Well Height | Well Volume | Qty/Pack |
|---|---|---|---|---|---|
| DP21US-9-GC10 | Glass Coated Plate, 96 Square Well | U-Bottom | 41.60 mm | 2.0 mL | 10 |
| DP22VS-9-GC10 | Glass Coated Plate, 96 Square Well | V-Bottom | 41.20 mm | 2.2 mL | 10 |
384 Square Well Plates — SiO₂ Glass Coated
| Cat # | Description | Bottom | Well Height | Well Volume | Qty/Pack |
|---|---|---|---|---|---|
| DP120-SQ-384-GC10 | Glass Coated Plate, 384 Square Well | U-Bottom | 14.40 mm | 120 µL | 10 |
| DP24VS-384-GC10 | Glass Coated Plate, 384 Square Well | V-Bottom | 24.90 mm | 200 µL | 10 |
