Product Description
LIGHT LABS is proud to offer the MTC Bio ILP Glass Coated Multiwell Plate (Cat # DP21US-9-GC10) — the first of two 96-well square well deep well formats in the ILP Glass Coated Plate lineup, featuring the proprietary SiO₂ (silicon dioxide) quartz glass-coated wells in a square well U-bottom geometry at 41.60mm well height and 2.0 mL well volume. The transition from round wells to square wells is a critical design difference that dramatically increases the volumetric efficiency of the 96-well footprint — square wells pack together with no dead space between wells, delivering significantly more volume per well and per plate than round wells of the same plate height. The DP21US-9-GC10's 2.0 mL square well volume at 41.60mm height makes it the highest-volume U-bottom format in the entire ILP Glass Coated Plate lineup when square wells are considered.
The square well U-bottom geometry of the DP21US-9-GC10 is the preferred format for high-throughput solid-phase extraction (SPE), protein precipitation, and sample preparation workflows that use 96-well positive pressure manifolds or centrifugation for liquid transfer — where the square well geometry maximizes the volume available for sample and elution solvent while the U-bottom provides even distribution of liquid across the well base for consistent flow through SPE sorbents. The SiO₂ glass coating addresses all three key performance gaps of standard polypropylene deep well plates simultaneously — eliminating plastic leaching and extractables, reducing oxygen transmission through well walls, and minimizing non-specific adsorption of lipophilic analytes to the well surface — making the DP21US-9-GC10 the analytically superior alternative to standard PP 96-well square well deep well plates for bioanalytical and discovery chemistry applications requiring glass-like chemical inertness. LIGHT LABS is your trusted source for MTC Bio ILP Glass Coated Plates.
KEY FEATURES
- 96-well square well U-bottom deep well format — 41.60mm well height, 2.0 mL well volume; square well geometry maximizes volumetric efficiency vs. round wells of equivalent plate height
- Square wells pack without dead space — significantly more volume per well and per plate than round wells at the same height; superior volumetric efficiency
- U-bottom square well geometry — ideal for SPE, protein precipitation, centrifugation workflows where even distribution of liquid across well base is important
- Highest-volume U-bottom format in the ILP Glass Coated Plate lineup — 2.0 mL square U-bottom at 41.60mm provides maximum working volume for high-throughput sample preparation

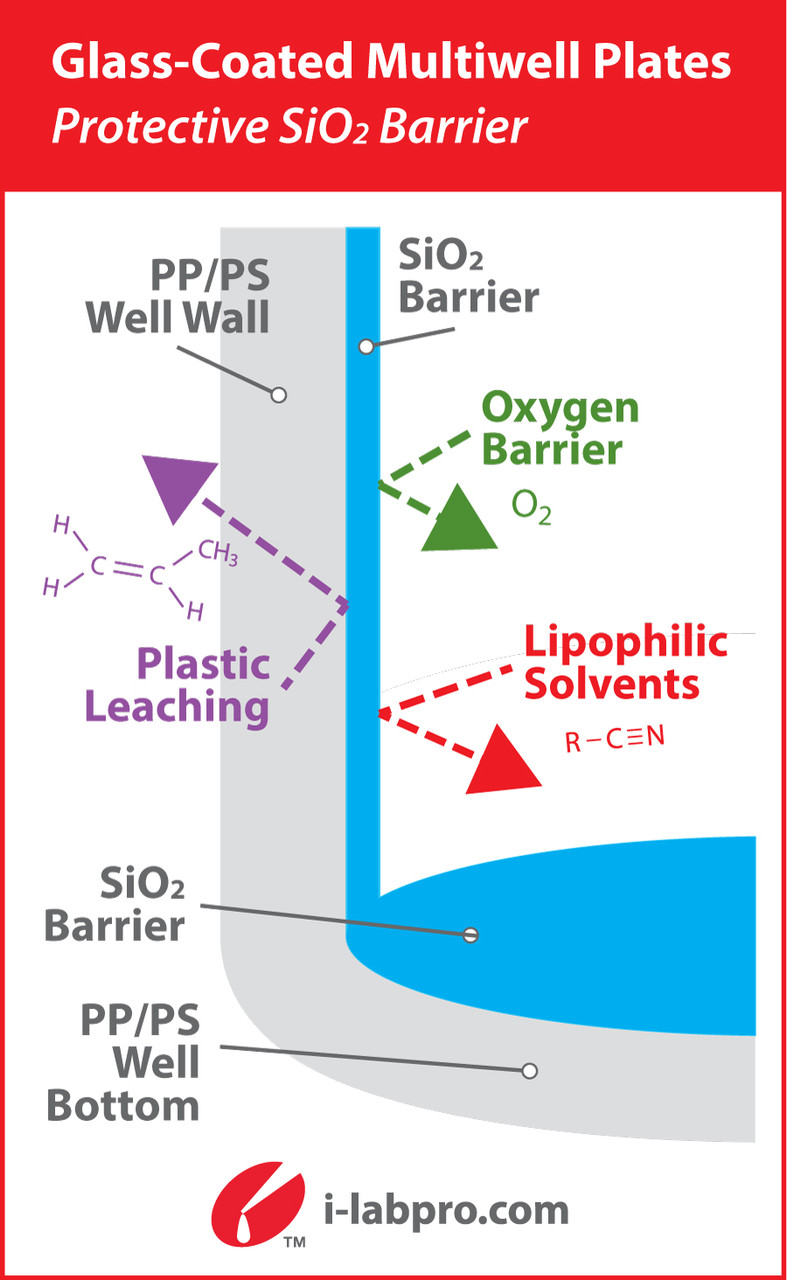

- Proprietary SiO₂ (silicon dioxide) quartz glass inner well coating — creates molecularly thin glass barrier between sample and PP well wall; glass-like surface properties in a plastic plate format
- Eliminates plastic leaching — SiO₂ barrier dramatically reduces extractables and leachables from PP into sensitive bioanalytical samples
- Reduced oxygen transmission rate — glass coating reduces O₂ permeation through well walls; critical for oxygen-sensitive analytes at 2.0 mL storage volumes
- Superior chemical resistance — glass-like resistance to DMSO, ACN, MeOH, and other organic solvents at 2.0 mL scale
- Minimizes analyte adsorption — glass surface reduces lipophilic compound, drug, and protein adsorption for maximum quantitative recovery
- Eliminates need for glass inserts in 96-well square well deep well format
- Automation compatible — fits all standard autosamplers, liquid handlers, and 96-well positive pressure manifolds
- Thermally and chemically stable: -80°C to +80°C
- Packaged 10 plates per pack
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | DP21US-9-GC10 |
| Brand | MTC Bio / ILP (Innovative Laboratory Products) |
| Product Name | ILP Glass Coated Multiwell Plate |
| Well Format | 96 Well, Square |
| Well Bottom | U-Bottom |
| Well Volume | 2.0 mL |
| Well Height | 41.60 mm |
| Well Coating | SiO₂ (silicon dioxide) quartz glass — inner well surface |
| Well Material | Polypropylene (outer) + SiO₂ glass coating (inner) |
| Temperature Range | -80°C to +80°C |
| Automation Compatible | Yes — autosamplers, liquid handlers, positive pressure manifolds |
| Plate Format | SBS standard footprint |
| Packaging | 10 plates/pack |
KEY ADVANTAGES OF SiO₂ GLASS COATING vs. STANDARD PP PLATES
| Challenge | Standard PP Plate | ILP Glass Coated Plate |
|---|---|---|
| Plastic Leaching | PP can release trace additives into samples | SiO₂ barrier eliminates contact between sample and polymer |
| Oxygen Transmission | O₂ permeates through PP walls | Glass coating reduces O₂ transmission rate |
| Lipophilic Adsorption | Compounds stick to PP surface, reducing recovery | Glass surface reduces non-specific adsorption |
| Chemical Resistance | Limited vs. organic solvents | Glass-like resistance to solvents and aggressive chemicals |
| Glass Inserts | Required for glass-like performance | Eliminated — glass coating achieves same result |
SQUARE WELL vs. ROUND WELL — KEY DIFFERENCES
| Feature | Square Well (DP21US-9-GC10) | Round Well (DP2M-RD-96-GC10) |
|---|---|---|
| Well Geometry | Square | Round |
| Well Volume | 2.0 mL at 41.60mm | 2.0 mL at 45.30mm |
| Volumetric Efficiency | Higher — no dead space between wells | Lower — circular wells leave gaps |
| Best For | SPE, protein precipitation, positive pressure manifold | Autosampler needle sampling, round well protocols |
| Plate Height | 41.60mm | 45.30mm |
APPLICATIONS
- 96-well solid-phase extraction (SPE) sample collection requiring glass-like inertness at 2.0 mL scale
- High-volume protein precipitation from 2.0 mL plasma, serum, or biological fluid
- Sample preparation for LC-MS/MS bioanalysis using 96-well positive pressure manifold
- Large-scale compound dissolution and dilution in DMSO at 2.0 mL per well
- High-density biobanking at 2.0 mL per well in glass-coated square well format
- Metabolomics and proteomics sample preparation requiring 2.0 mL input volumes
- Supported liquid extraction (SLE) at 2.0 mL scale in glass-coated format
- Any 96-well square well U-bottom application requiring maximum volume and glass-like well surface
ORDERING INFORMATION — MTC BIO ILP GLASS COATED MULTIWELL PLATES
96 Square Well Plates — SiO₂ Glass Coated
| Cat # | Description | Bottom | Well Height | Well Volume | Qty/Pack |
|---|---|---|---|---|---|
| DP21US-9-GC10 | Glass Coated Plate, 96 Square Well | U-Bottom | 41.60 mm | 2.0 mL | 10 |
| DP22VS-9-GC10 | Glass Coated Plate, 96 Square Well | V-Bottom | 41.20 mm | 2.2 mL | 10 |
96 Round Well Plates — SiO₂ Glass Coated
| Cat # | Description | Bottom | Well Height | Well Volume | Qty/Pack |
|---|---|---|---|---|---|
| DP2M-RD-96-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 45.30 mm | 2.0 mL | 10 |
| DP1M-RD-96-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 42.50 mm | 1.2 mL | 10 |
| DP11VR-9-GC10 | Glass Coated Plate, 96 Round Well | V-Bottom | 33.00 mm | 1.1 mL | 10 |
| DP10UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 33.00 mm | 1.1 mL | 10 |
| DP12UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 31.50 mm | 1.1 mL | 10 |
| DP35UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 14.40 mm | 500 µL | 10 |
| DP36VR-9-GC10 | Glass Coated Plate, 96 Round Well | V-Bottom | 14.60 mm | 300 µL | 10 |
| DP04UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 14.75 mm | 335 µL | 10 |
384 Square Well Plates — SiO₂ Glass Coated
| Cat # | Description | Bottom | Well Height | Well Volume | Qty/Pack |
|---|---|---|---|---|---|
| DP120-SQ-384-GC10 | Glass Coated Plate, 384 Square Well | U-Bottom | 14.40 mm | 120 µL | 10 |
| DP24VS-384-GC10 | Glass Coated Plate, 384 Square Well | V-Bottom | 24.90 mm | 200 µL | 10 |
