Product Description

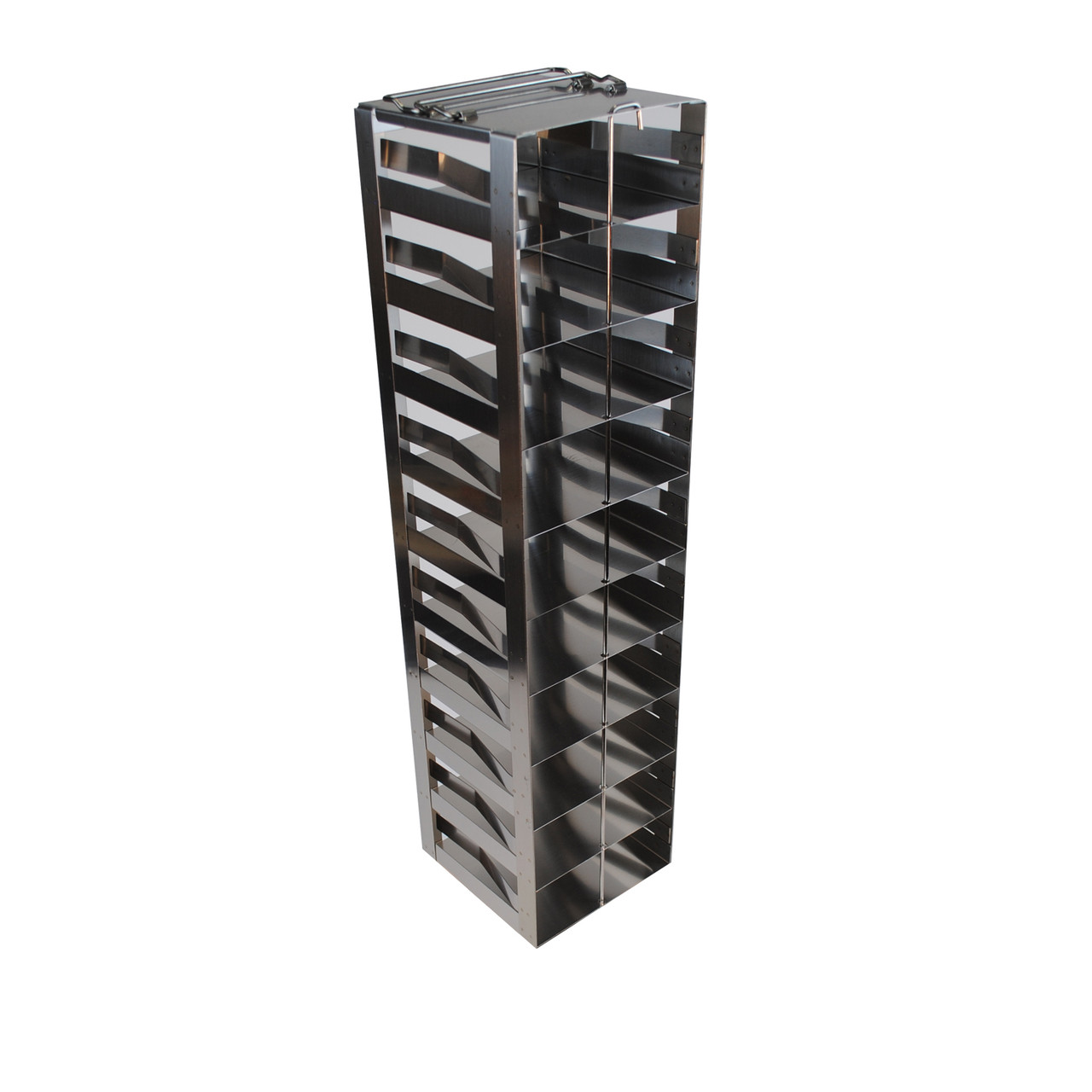

LIGHT LABS is proud to offer the Crystal Technology & Industries Stainless Steel Vertical Freezer Rack for Standard 3" Boxes (Cat # CF-10-3). This high-capacity vertical rack stores ten standard 3" freezer boxes in a single column, stacked 10 boxes high. It lowers straight down into laboratory chest freezers and liquid nitrogen (LN2) tanks. The taller 3" boxes hold larger cryovials, such as 4 mL and 5 mL tubes, so this rack is well suited to biorepositories and labs storing larger-volume samples. It organizes freezer space, speeds sample retrieval, and keeps the lid open for less time.
The CF-10-3 is made of pharmaceutical-grade stainless steel with double-welded joints for strength and long-term durability at ultra-low and cryogenic temperatures. All edges are smoothed for safe handling, even with cryogenic gloves. Each of the ten compartments measures 3 1/8" x 5 5/16" x 5 3/8" and accepts standard 3" cryoboxes and freezer boxes in fiberboard, cardboard, or plastic. A built-in handle at the top of the rack makes lifting it in and out of the freezer quick and easy. At just over 32" tall, the CF-10-3 is built for deep chest freezers and LN2 tanks.
The CF-10-3 is sold as a rack only. Storage boxes are not included, so you can use your existing 3" boxes. Pre-configured versions with 3" boxes and 81-cell or 100-cell dividers are also available. For added sample security, an optional lock device is sold separately. LIGHT LABS is your trusted source for laboratory freezer racks and cold storage solutions.
KEY FEATURES
- Holds 10 standard 3" boxes — single-column vertical design, 10 boxes high
- For larger cryovials — 3" boxes accommodate taller tubes such as 4 mL and 5 mL cryovials
- For chest freezers and LN2 tanks — lowers straight down for efficient top-access storage
- Pharmaceutical-grade stainless steel — corrosion resistant and durable at ultra-low and cryogenic temperatures
- Double-welded construction — strong, rigid, built for long-term use
- Smoothed edges — safe handling, even with cryogenic gloves
- Built-in handle — easy lifting in and out of the freezer
- Generous compartments — 3 1/8" x 5 5/16" x 5 3/8" each, for standard 3" boxes
- Rack only — use your existing 3" fiberboard, cardboard, or plastic boxes
- Versions with boxes available — with 81-cell (CF-10-3-X-81) or 100-cell (CF-10-3-X-100) dividers
- Optional lock device — sold separately
- Made by Crystal Technology & Industries
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | CF-10-3 |
| Brand | Crystal Technology & Industries |
| Product Name | Stainless Steel Vertical Freezer Rack for Standard 3" Boxes |
| Rack Type | Vertical (top-access) |
| Box Capacity | 10 boxes (1 column x 10 high) |
| Box Size | Standard 3" freezer boxes |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double-welded, smoothed edges |
| Handle | Yes, built-in |
| Freezer Compatibility | Chest freezers, LN2 tanks |
| Overall Dimensions | 32 1/16" x 5 5/8" x 5 1/2" (814 x 143 x 140 mm) |
| Compartment Dimensions | 3 1/8" x 5 5/16" x 5 3/8" (79.3 x 134.5 x 136 mm) |
| Boxes Included | No (rack only) |
| Lock Device | Sold separately |
CF-10-3 (3" BOXES) vs. CF-10-2 (2" BOXES) — WHICH RACK DO YOU NEED?
| Feature | CF-10-3 | CF-10-2 |
|---|---|---|
| Box Size | Standard 3" boxes | Standard 2" boxes |
| Box Capacity | 10 boxes | 10 boxes |
| Typical Vials | Taller cryovials (e.g., 4–5 mL) | Standard cryovials (e.g., 1–2 mL) |
| Overall Height | 32 1/16" (814 mm) | 22 5/16" (566 mm) |
| Width x Depth | 5 5/8" x 5 1/2" | 5 5/8" x 5 1/2" |
| Material | Pharmaceutical-grade stainless steel | Pharmaceutical-grade stainless steel |
| Freezer Compatibility | Chest freezers, LN2 tanks | Chest freezers, LN2 tanks |
ORDERING INFORMATION — CRYSTAL 10-HIGH VERTICAL RACKS
| Cat # | Description |
|---|---|
| CF-10-3 | Stainless Steel Vertical Rack for 3" Boxes, 10 Boxes High, rack only |
| CF-10-3-X-81 | Stainless Steel Vertical Rack, 10 x 3" boxes with 81-cell dividers |
| CF-10-3-X-100 | Stainless Steel Vertical Rack, 10 x 3" boxes with 100-cell dividers |
| CF-10-2 | Stainless Steel Vertical Rack for 2" Boxes, 10 Boxes High, rack only |
| CF-10-2-S | Stainless Steel Vertical Rack with Spring Clips for 2" Boxes, 10 Boxes High, rack only |
APPLICATIONS
- Organized storage of 3" cryoboxes in chest freezers (−20°C, −80°C)
- Vapor-phase and liquid-phase LN2 tank storage
- Storage of 4 mL and 5 mL cryovials and taller sample tubes
- Biorepository and biobank sample organization
- Serum, plasma, and urine sample archiving
- Cell line, stem cell, and primary cell cryopreservation
- Any laboratory application requiring durable, organized vertical storage of standard 3" freezer boxes
