Product Description

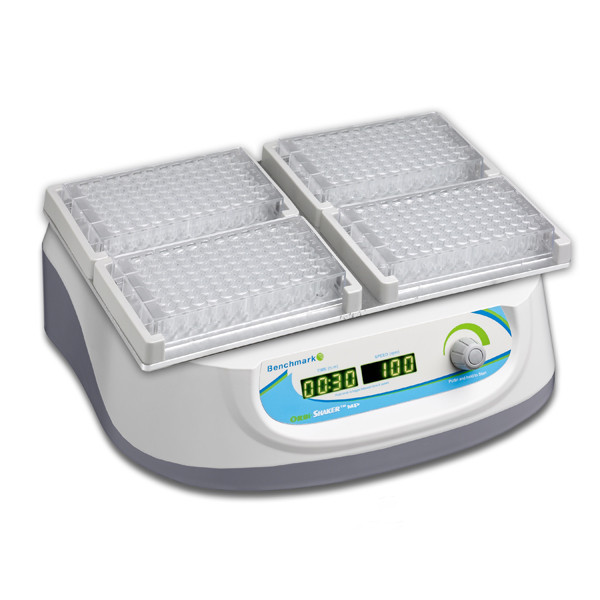

LIGHT LABS is proud to offer the Benchmark Scientific Orbi-Shaker™ MP Microplate Shaker with 4-Position Platform (Cat # BT1502). This compact, high-speed orbital shaker is built for mixing and vortexing microplates. It holds up to four standard microplates, PCR plates, or deep-well plates. With the optional microtube adapters, it also holds up to 80 microcentrifuge tubes. Speeds run from 200 to 1500 RPM on a 3 mm orbit, which gives thorough, efficient mixing in small well volumes for ELISA, cell-based assays, sample preparation, and general plate mixing.
The included 4-position platform holds plates securely with fitted brackets, so you don't need springs, clamps, or tools. Plates load and unload in seconds. A digital microprocessor provides precise speed control in 10 RPM increments, and a large LED display shows speed and time. The timer runs from 1 minute to 99 hours or continuously. A brushless, maintenance-free motor delivers smooth, quiet, reliable operation. When mixing deep-well plates, maximum speed is limited to 1000 RPM to keep samples secure.
The Orbi-Shaker™ MP is rated for operation from +4°C to +65°C, so it can go straight into a cold room or incubator for temperature-controlled mixing. It runs on universal 100–240V power and carries a 2-year warranty. LIGHT LABS is your trusted source for Benchmark Scientific laboratory equipment.
KEY FEATURES
- 4-position microplate platform included — holds up to 4 standard microplates, PCR plates, or deep-well plates
- Tool-free plate loading — fitted brackets hold plates securely without springs, clamps, or tools
- Variable speed: 200–1500 RPM — adjustable in 10 RPM increments (max 1000 RPM with deep-well plates)
- 3 mm orbit — thorough, efficient mixing in microplate wells
- Digital microprocessor control — accurate, repeatable speed settings
- Large LED display — shows speed and time
- Programmable timer — 1 minute to 99 hours, or continuous operation
- Brushless, maintenance-free motor — smooth, quiet, reliable operation
- Cold room and incubator compatible — +4°C to +65°C operating range
- Microtube capability — holds up to 80 microcentrifuge tubes with optional adapters
- Universal power: 100–240V, 50/60 Hz, 250W
- Weight: 12 lbs (5.5 kg)
- 2-year warranty
- Made by Benchmark Scientific
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | BT1502 |
| Brand | Benchmark Scientific |
| Product Name | Orbi-Shaker™ MP Microplate Shaker with 4-Position Platform |
| Speed Range | 200–1500 RPM (max 1000 RPM with deep-well plates) |
| Speed Increment | 10 RPM |
| Orbit | 3 mm |
| Capacity | Up to 4 microplates (standard, PCR, or deep-well) |
| Microtube Capacity | Up to 80 microcentrifuge tubes (with optional adapters) |
| Plate Retention | Fitted brackets — no springs, clamps, or tools |
| Timer | 1 minute to 99 hours, or continuous |
| Display | Large LED — speed and time |
| Motor | Brushless, maintenance-free |
| Operating Temperature | +4°C to +65°C |
| Dimensions (W x D x H) | 13.1" x 11.7" x 4.7" (33.3 x 29.8 x 12 cm) |
| Weight | 12 lbs (5.5 kg) |
| Electrical | 100–240V, 50/60 Hz; 250W |
| Warranty | 2 years |
WHAT'S INCLUDED
- Orbi-Shaker™ MP Microplate Shaker (BT1502)
- 4-position platform for standard, PCR, and deep-well microplates
- Power cord and operator's manual
OPTIONAL ACCESSORIES FOR BT1502 (SOLD SEPARATELY)
| Cat # | Description |
|---|---|
| BT1500-A05 | Microtube Adapter, holds 20 x 0.5/0.65 mL tubes (occupies one plate position) |
| BT1500-A1520 | Microtube Adapter, holds 20 x 1.5/2.0 mL tubes (occupies one plate position) |
Note: Use up to four adapters at once, in any combination, for a maximum of 80 microcentrifuge tubes.
ORBI-SHAKER™ MP (BT1502) vs. INCU-MIXER™ MP4 (H6004) — WHICH DO YOU NEED?
| Feature | Orbi-Shaker™ MP (BT1502) | Incu-Mixer™ MP4 (H6004) |
|---|---|---|
| Plate Capacity | 4 microplates | 4 microplates |
| Heating | No — use in cold room or incubator | Yes — ambient +5°C to 70°C with heated lid |
| Speed Range | 200–1500 RPM | 100–1500 RPM |
| Orbit | 3 mm | 2 mm |
| Cold Room Compatible | Yes — +4°C to +65°C | — |
| Microtube Adapters | Yes — up to 80 tubes | — |
| Weight | 12 lbs | 18 lbs |
| Best For | Room-temperature, cold room, or in-incubator plate mixing | Plate protocols requiring built-in heating |
APPLICATIONS
- ELISA and immunoassay plate mixing
- Cell-based assays and cell lysis in plate format
- Deep-well plate sample preparation and extraction
- PCR plate and reaction setup mixing
- Bead-based and magnetic bead resuspension in plates
- Microcentrifuge tube mixing with optional adapters
- Cold room mixing at 4°C and in-incubator shaking
- Any laboratory application requiring high-speed, compact microplate mixing
ORDERING INFORMATION — BENCHMARK SCIENTIFIC MICROPLATE SHAKERS & MIXERS
| Cat # | Product | Heating | Key Feature |
|---|---|---|---|
| BT1502 | Orbi-Shaker™ MP Microplate Shaker | No | 4 plates, 200–1500 RPM, cold room safe |
| BT1500-A05 | Microtube Adapter, 20 x 0.5/0.65 mL | — | Accessory for BT1502 |
| BT1500-A1520 | Microtube Adapter, 20 x 1.5/2.0 mL | — | Accessory for BT1502 |
| H6002 | Incu-Mixer™ MP2 Heated Microplate Vortexer | Yes — to 70°C | 2 plates, heated lid |
| H6004 | Incu-Mixer™ MP4 Heated Microplate Vortexer | Yes — to 70°C | 4 plates, heated lid, deep-well |
