Product Description

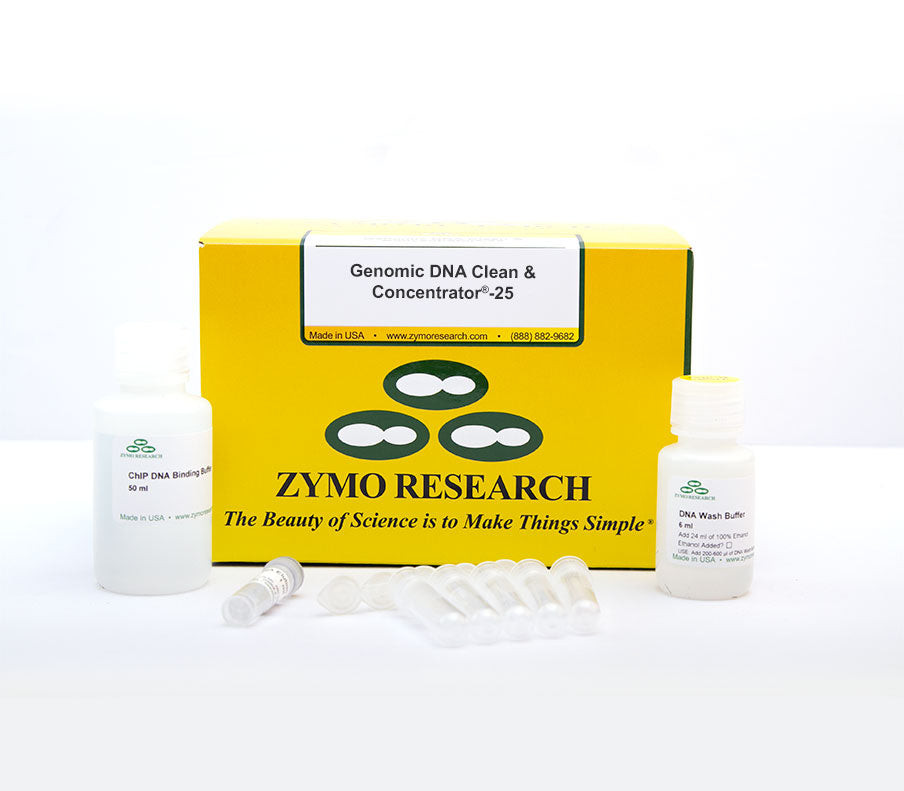

LIGHT LABS is proud to offer the Zymo Research Genomic DNA Clean & Concentrator™-25 (Cat # D4065) — a high-capacity spin column kit designed for the rapid, 5-minute cleanup and concentration of ultra-pure large-sized genomic DNA and other high-molecular-weight DNA from enzymatic reactions, Proteinase K digestions, crude preparations, and other complex sample sources. The D4065 is the 100-prep large-format version of the D4064, offering outstanding value for labs running high volumes of gDNA cleanup workflows.
With a binding capacity of up to 25 µg per column and the ability to purify DNA across an exceptionally broad size range — from small fragments as short as 50 bp all the way to large genomic DNA up to 200 kb — the Genomic DCC™-25 fills the gap between standard PCR cleanup kits and conventional ethanol precipitation. Using Zymo Research's ChIP DNA Binding Buffer and Zymo-Spin™ column technology, there is no need for chloroform, organic denaturants, or messy precipitations — just a simple bind-wash-elute workflow completed in approximately 5 minutes. Eluted DNA achieves exceptional purity (A260/280 ≥ 1.8) and is immediately ready for PCR, sequencing, endonuclease digestion, and NGS applications. LIGHT LABS is your trusted source for Zymo Research products.
KEY FEATURES
- Fast 5-minute gDNA cleanup protocol — simple bind-wash-elute workflow
- High binding capacity of up to 25 µg per column — higher than standard PCR cleanup columns
- Broad DNA size range: 50 bp to >200 kb — suitable for genomic, mitochondrial, BAC/PAC, viral, phage, and WGA DNA
- Also compatible with smaller DNAs from PCR, restriction digests, crude plasmid preparations, and cDNA synthesis (50 bp to 10 kb)
- No chloroform, organic denaturants, or messy precipitation required
- ChIP DNA Binding Buffer specially formulated for efficient capture of large-sized genomic DNA
- Unique Zymo-Spin™ column design with zero buffer retention for low-volume elution (≥ 35 µl)
- High DNA purity — A260/280 ≥ 1.8, suitable for all downstream molecular biology applications
- Compatible with centrifuge or vacuum processing
- Picogram levels of DNA recoverable (limitation based on sensitivity of detection method)
- Fisher Scientific Catalog No. NC0760907
- VWR Catalog No. 77001-342
- Stored at room temperature
- Made in the USA by Zymo Research
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | D4065 |
| Fisher Scientific Catalog No. | NC0760907 |
| VWR Catalog No. | 77001-342 |
| Brand | Zymo Research |
| Kit Name | Genomic DNA Clean & Concentrator™-25 |
| Format | Spin Column |
| Number of Preps | 100 |
| DNA Binding Capacity | Up to 25 µg per column |
| DNA Size Range | ~50 bp to >200 kb |
| DNA Purity | A260/280 ≥ 1.8 |
| Minimum Elution Volume | ≥ 35 µl |
| Processing Time | ~5 minutes |
| Processing Method | Centrifuge (10,000–16,000 x g) or vacuum |
| Storage Temperature | Room temperature |
| Kit Components | ChIP DNA Binding Buffer, DNA Wash Buffer concentrate, DNA Elution Buffer, Zymo-Spin™ II-XL Columns, Collection Tubes, Instruction Manual |
APPLICATIONS
- Genomic DNA (gDNA) cleanup and concentration from enzymatic reactions
- Post-Proteinase K digestion DNA cleanup
- WGA (whole genome amplification) product cleanup
- ChIP (chromatin immunoprecipitation) DNA cleanup
- Mitochondrial DNA purification
- BAC/PAC large plasmid DNA cleanup from crude preparations
- Viral and phage DNA cleanup and concentration
- PCR product cleanup (50 bp to 10 kb)
- Restriction endonuclease digestion cleanup
- cDNA synthesis cleanup
- NGS library preparation sample cleanup
- Any workflow requiring rapid, high-capacity gDNA purification and concentration
ORDERING INFORMATION
| Cat # | Description | Max Capacity | Preps |
|---|---|---|---|
| D4065 | Genomic DNA Clean & Concentrator™-25 | 25 µg | 100 |
| D4064 | Genomic DNA Clean & Concentrator™-25 | 25 µg | 25 |
| D4011 | Genomic DNA Clean & Concentrator™-10 | 10 µg | 100 |
| D4010 | Genomic DNA Clean & Concentrator™-10 | 10 µg | 25 |

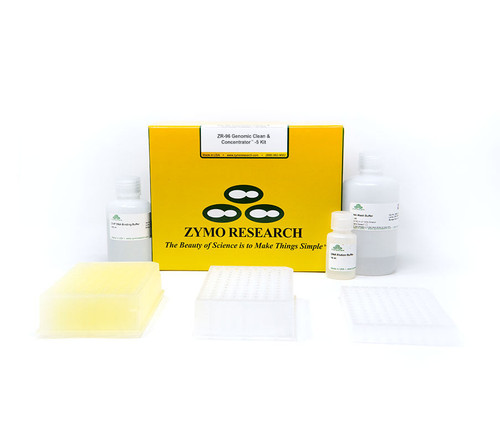

| D4067 | ZR-96 Genomic DNA Clean & Concentrator™-5 (96-well) | 5 µg/well | 4 x 96 |
| D4066 | ZR-96 Genomic DNA Clean & Concentrator™-5 (96-well) | 5 µg/well | 2 x 96 |

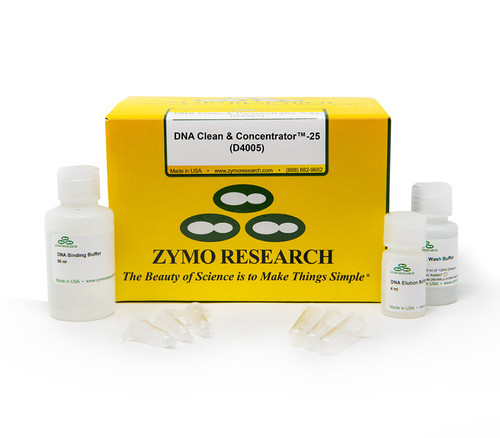

| D4032 | DNA Clean & Concentrator™-500 | 500 µg | 20 |
| D4031 | DNA Clean & Concentrator™-500 | 500 µg | 10 |
