Product Description

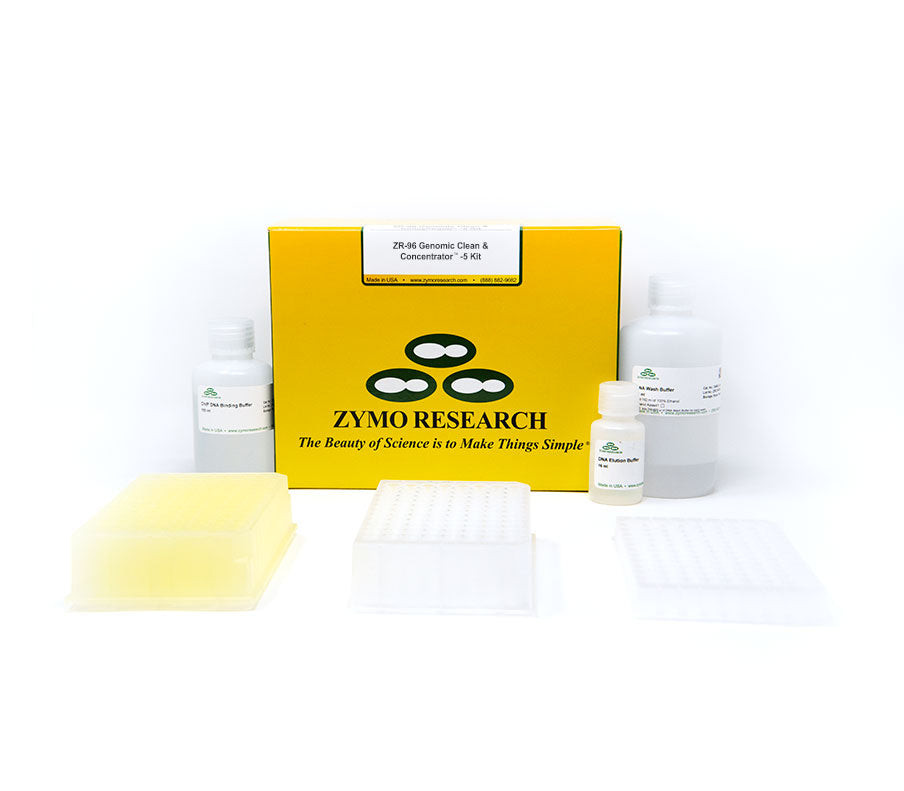

LIGHT LABS is proud to offer the Zymo Research ZR-96 Genomic DNA Clean & Concentrator™-5 (Cat # D4066) — a powerful, high-throughput 96-well plate-based kit engineered for the rapid cleanup and concentration of large-sized genomic and other high-molecular-weight DNA from enzymatic reactions, crude preparations, and a wide range of complex sample sources. Processing 96 samples in parallel in approximately 20 minutes, the D4066 is purpose-built for labs running high-throughput genomics, whole genome amplification (WGA), ChIP, and next-generation sequencing (NGS) workflows where sample purity and throughput are equally critical.
Unlike conventional gDNA cleanup methods, the D4066 requires no organic denaturants, chloroform, or messy precipitation steps — simply add Zymo Research's specially formulated ChIP DNA Binding Buffer to the sample, transfer to the Zymo-Spin™ I-96-XL plate, wash, and elute. Purified DNA achieves exceptional purity (A260/280 ≥ 1.8) and can span a remarkable size range from fragments as small as 50 bp all the way up to 200 kb — making this kit uniquely suited for genomic, mitochondrial, plasmid (BAC/PAC), viral, phage, and whole genome amplified (WGA) DNA cleanup. LIGHT LABS is your trusted source for Zymo Research products.
KEY FEATURES
- High-throughput 96-well format — process up to 96 samples simultaneously in approximately 20 minutes
- Captures and purifies large-sized DNA up to 200 kb — broader range than standard PCR cleanup kits
- Also compatible with smaller DNA fragments from 50 bp to 10 kb — including PCR products, restriction digests, crude plasmid preparations, and cDNA synthesis reactions
- Up to 5 µg DNA binding capacity per well
- No organic denaturants, chloroform, or precipitation required — clean, safe, simple workflow
- ChIP DNA Binding Buffer specially formulated for efficient capture of high-molecular-weight DNA
- High DNA purity — A260/280 ≥ 1.8, suitable for all downstream molecular biology applications
- Minimum elution volume of ≥ 15 µl for concentrated eluates
- Zymo-Spin™ I-96-XL plate compatible with centrifuge processing
- Eluted DNA immediately ready for sequencing, PCR, endonuclease digestion, and other enzymatic procedures
- Made in the USA by Zymo Research
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | D4066 |
| Brand | Zymo Research |
| Kit Name | ZR-96 Genomic DNA Clean & Concentrator™-5 |
| Format | 96-Well Plate |
| Number of Preps | 2 x 96 (192 total) |
| DNA Binding Capacity | Up to 5 µg per well |
| DNA Size Range | ~50 bp to 200 kb |
| DNA Purity | A260/280 ≥ 1.8 |
| Column/Plate Type | Zymo-Spin™ I-96-XL Plate |
| Minimum Elution Volume | ≥ 15 µl |
| Processing Time | ~20 minutes |
| Processing Method | Centrifuge |
| Storage Temperature | Room temperature |
| Kit Components | ChIP DNA Binding Buffer (100 mL), DNA Wash Buffer (24 mL), DNA Elution Buffer (10 mL), Zymo-Spin™ I-96-XL Plates (2), Collection Plates (2), Elution Plates (2), Instruction Manual |
APPLICATIONS
- High-throughput genomic DNA (gDNA) cleanup and concentration
- Whole genome amplification (WGA) product cleanup
- ChIP (chromatin immunoprecipitation) DNA cleanup
- Mitochondrial DNA purification
- Plasmid DNA cleanup (BAC/PAC)
- Viral and phage DNA purification
- Post-Proteinase K digestion cleanup
- PCR product cleanup and concentration (50 bp to 10 kb)
- Restriction endonuclease digestion cleanup
- cDNA synthesis cleanup
- NGS library preparation sample cleanup
- Any high-throughput workflow requiring rapid, large-format gDNA purification
ORDERING INFORMATION
| Cat # | Description | Format | Max Capacity/Well | Preps |
|---|---|---|---|---|
| D4066 | ZR-96 Genomic DNA Clean & Concentrator™-5 | 96-Well | 5 µg | 2 x 96 |
| D4067 | ZR-96 Genomic DNA Clean & Concentrator™-5 | 96-Well | 5 µg | 4 x 96 |
| D4064 | ZR-96 DNA Clean & Concentrator™-25 | 96-Well | 25 µg | 2 x 96 |
| D4065 | ZR-96 DNA Clean & Concentrator™-25 | 96-Well | 25 µg | 4 x 96 |
| D4023 | ZR-96 DNA Clean & Concentrator™-5 | 96-Well | 5 µg | 2 x 96 |
| D4024 | ZR-96 DNA Clean & Concentrator™-5 | 96-Well | 5 µg | 4 x 96 |
| D4010 | Genomic DNA Clean & Concentrator™-10 | Spin Column | 10 µg | 25 |
| D4011 | Genomic DNA Clean & Concentrator™-10 | Spin Column | 10 µg | 50 |
