Product Description
Stack more boxes into a chest freezer or LN2 tank without losing track of a single sample. These vertical racks hold standard 3" or 4" boxes in a single tower, from 4 to 9 boxes high, so you can match the rack to the usable depth of your freezer.

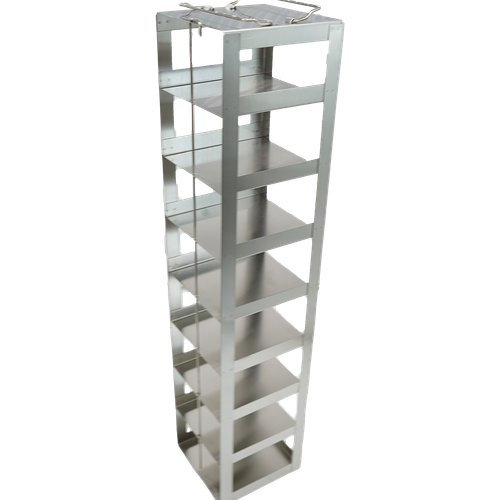

This listing is for Crystal catalog number CF-4-3, the Vertical Freezer Rack for 3" Boxes. The racks are pharmaceutical-grade stainless steel, double welded, with smoothed edges, in a 5 5/8 x 5 1/2 in footprint. The full tower lifts out in one piece for access, and a security lock device is ordered separately. LIGHT LABS stocks Crystal freezer racks and ships them quickly from Englewood, Colorado.
Key Features
- Pharmaceutical-Grade Stainless Steel – corrosion-resistant steel holds up to repeated cycles at ultra-low temperatures and in liquid nitrogen vapor
- Double-Welded Construction – welded joints and smoothed edges keep the rack rigid and safe to handle with gloved hands
- Vertical Top-Loading Format – a slim tower that lowers straight into chest freezers and liquid nitrogen tanks
- Lock-Ready Design – accepts a Crystal security lock device (ordered separately) to keep boxes from sliding out
- Lifetime Warranty – Crystal backs all of its rack products with a lifetime warranty
Specifications
| Catalog Number | CF-4-3 |
| Brand | Crystal Technology & Industries |
| Box Type | Standard 3" boxes |
| Box Capacity | 4 boxes |
| Configuration | 4 high, vertical |
| Overall Dimensions (H x W x D) | 13 x 5 5/8 x 5 1/2 in (330 x 143 x 140 mm) |
| Compartment Dimensions (H x W x D) | 3 1/8 x 5 5/16 x 5 3/8 in (79.3 x 134.5 x 136 mm) |
| Lock | Ordered separately |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double welded with smoothed edges |
| Rack Style | Vertical, for chest freezers & LN2 tanks |
| Security Lock | Lock device ordered separately |
| Warranty | Lifetime warranty on rack products |
Other Configurations
- CF-10-2
- CF-10-3
- CF-11-2
- CF-12-2
- CF-13-2
- CF-14-2
- CF-15-2
- CF-3-2
- CF-4-2
- CF-5-2
- CF-5-3 – Holds 5 Boxes
- CF-5-4 – Holds 5 Boxes
- CF-6-2
- CF-6-3 – Holds 6 Boxes
- CF-6-4 – Holds 6 Boxes
- CF-7-2
Applications
- Chest freezer sample storage
- Liquid nitrogen tank inventory
- Cryovial box storage
- Biorepository organization
