Product Description

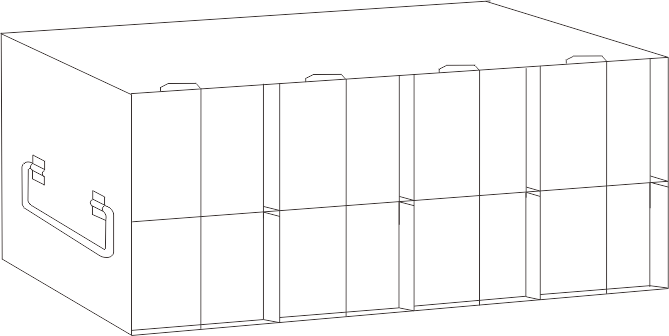

Store more plates on every shelf. The Crystal Technology & Industries UFMP-416L Upright Freezer Rack holds up to 96 microtiter plates with lids (112 without), with tall 7 15/16" compartments that each take a stack of 12 lidded plates. Its 8 compartments are arranged four deep and two high in a 16" tall rack built for full-height freezer shelves.
Each compartment is sized for standard-footprint 96-well and 384-well microtiter plates, including deep-well and PCR plates that share the same footprint. The rack is made from durable stainless steel with double welds and rounded edges, so it stays strong and corrosion-free through years of ultra-low temperature storage and is comfortable to handle with cryo gloves. A locking rod keeps plates in place, and an optional security lock device is available separately.
The UFMP-416L is part of Crystal's complete line of upright freezer racks for microtiter plates, available in depths from 3 to 7 compartments and heights from 9 3/16" to 18 15/16". LIGHT LABS carries the full line so you can match a rack to every shelf in your freezer.
Key Features
- Holds 96 plates with lids – 112 plates without lids
- Fits 96-well and 384-well plates – Compartments sized for standard-footprint microtiter plates
- 4 deep x 2 high – Compartments arranged four deep and two high
- 16" tall design – Compartments 7 15/16" high, about 12 lidded plates each
- Locking rod – Keeps plates secure; optional security lock device sold separately
- Stainless steel construction – Corrosion-resistant and durable at ultra-low temperatures
- Double welds and rounded edges – Rigid construction that is comfortable to handle
- Slim 5 1/2" width – Fits side by side with other racks on the freezer shelf
Specifications
| Catalog Number | UFMP-416L |
| Brand | Crystal Technology & Industries |
| Rack Type | Upright freezer rack for microtiter plates |
| Plate Format | 96-well and 384-well microtiter plates (standard footprint) |
| Capacity | 96 plates with lids / 112 plates without lids |
| Configuration | 4 compartments deep x 2 compartments high |
| Material | Stainless steel, double welded, rounded edges |
| Locking | Locking rod; security lock device sold separately |
| Overall Dimensions (W x D x H) | 5 1/2 x 15 3/16 x 16 in (140 x 386 x 407 mm) |
| Compartment Dimensions (W x D x H) | 5 3/16 x 3 9/16 x 7 15/16 in (130.5 x 91 x 202 mm) |
| Plates Included | No, rack only |
Choose by Height – 4-Deep Microplate Racks
- UFMP-409L – 9 3/16" tall, 56 plates with lids / 64 without
- UFMP-411L – 11" tall, 64 plates with lids / 80 without
- UFMP-412L – 12" tall, 72 plates with lids / 84 without
- UFMP-416L – 16" tall, 96 plates with lids / 112 without
- UFMP-419L – 18 15/16" tall, 116 plates with lids / 136 without
Choose by Depth – 16" Tall Microplate Racks
- UFMP-316L – 3 deep, 11 1/2" deep, 72 plates with lids / 84 without
- UFMP-416L – 4 deep, 15 3/16" deep, 96 plates with lids / 112 without
- UFMP-516L – 5 deep, 18 13/16" deep, 120 plates with lids / 140 without
- UFMP-616L – 6 deep, 22 1/2" deep, 144 plates with lids / 168 without
- UFMP-716L – 7 deep, 26 1/8" deep, 168 plates with lids / 196 without
Applications
- High-throughput screening plate libraries
- Compound and drug discovery plate storage
- Genomics, PCR, and sequencing plate archives
- ELISA and assay plate storage
- Biobanking in -80°C and -20°C upright freezers
- Clinical, research, and pharmaceutical laboratories
